With 2 pcs 25mm neodymium magnet high driver, 1 pcs :65mm voice coil neodymium magnet 10 inch woofers.
TQ10 Single 10inch line array speaker ,nice looking ,small size big SPL. Bass woofer and high driver all are neodymium
This model built-in three ways DSP active module, very high sensitivity, enable for remote control,easy for operation. And we will offer adjustment service before shipment.

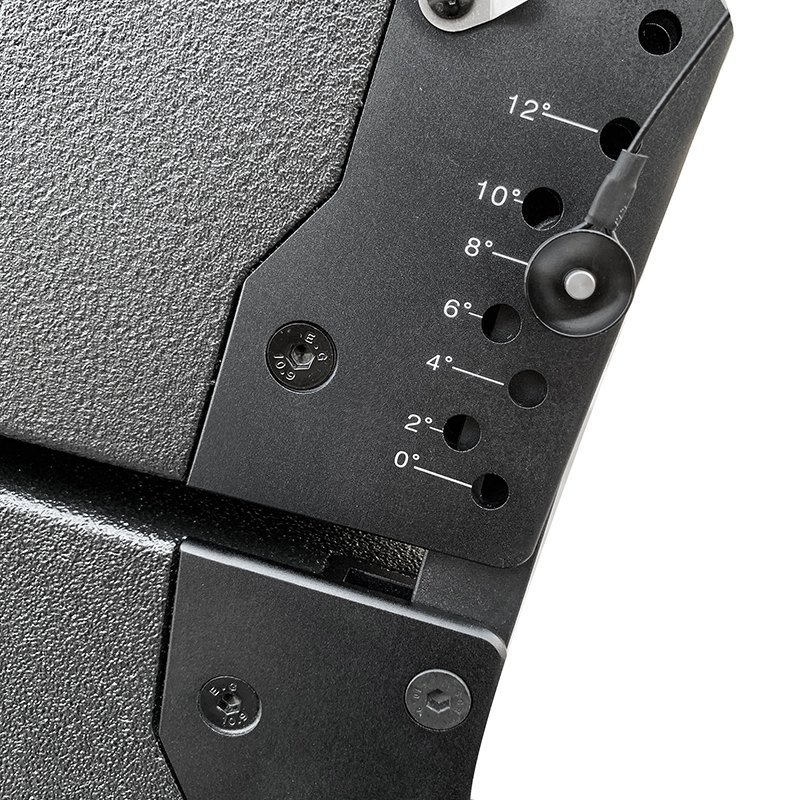

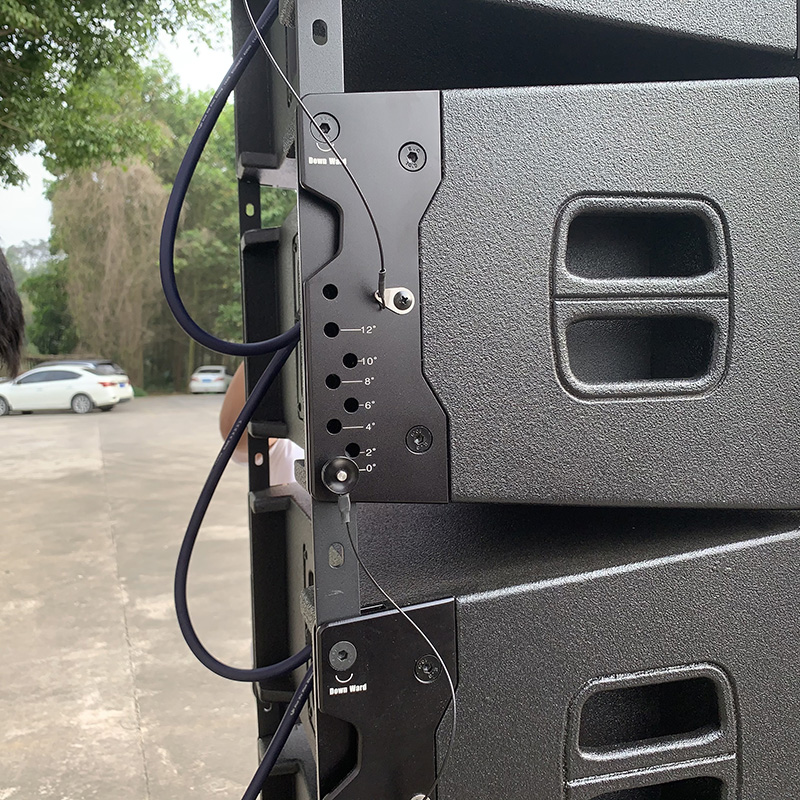

The coverage pattern can be adjusted from 0 to 12 degree.beautiful mesh grill design,high standards of workmanship and quality control.
Suitable for indoor show and small outdoor show.Passive and active for choice.
| Model | TQ10 | TQ18B-P |
| System Type: | Passive double 10 inch line array speaker | Active single 18 inch line array subwoofer |
| Frequency Range: | 55Hz-20kHz | 40Hz-400Hz |
| Frequency Response: | 60Hz-18kHz(±3dB) | 45Hz-150Hz(±3dB) |
| Sensitivity: | 104dB SPL 1w/1m | 102dB SPL 1w/1m |
| Nominal Impedance: | 16 ohms | 8 ohms |
| Power Rating: | 300W | 650W |
| Maximum SPL@1M: | 133dB SPL | 130dB SPL |

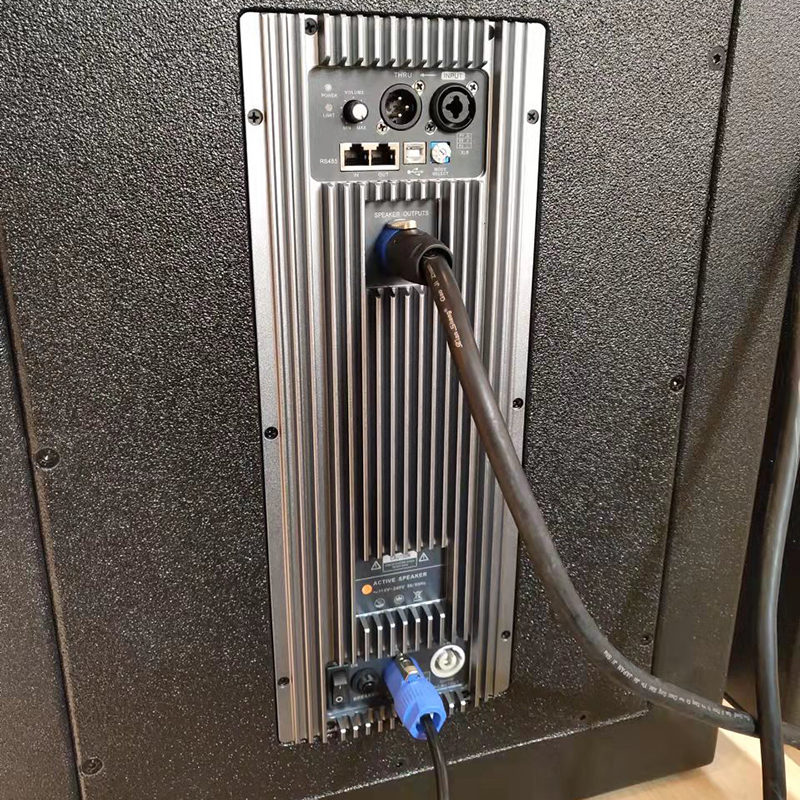

| Amplifier design: | / | Class D with DSP |
| Amplifier power: | / | 1600W+1600W+600W/8 ohms |
| Ac Power Input | / | 210-240V AC 50/60Hz or 110V AC 50/60Hz |
| Coverage Pattern: | 110°x 15° | / |
| Input Connectors: | Double Neutrik® NL4MP | Double Neutrik® NL4MP |

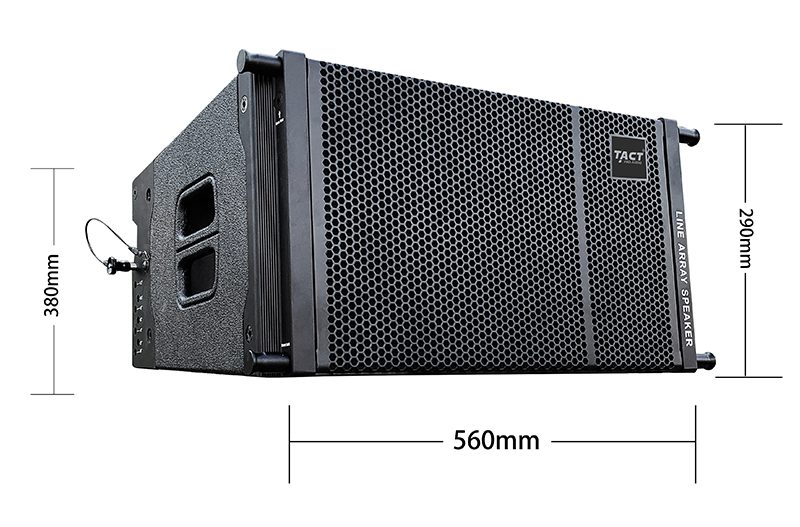

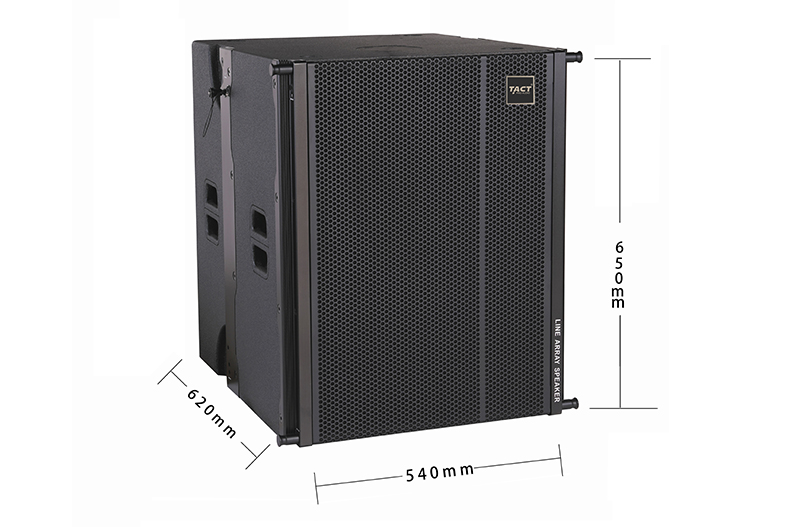

| Dimension(H*W*D): | 290mm*560mm*380mm | 650mm*540mm*620mm |
| Net Weight(each): | 16KG | 49KG |
With 2 pcs 25mm neodymium magnet high driver, 1 pcs :65mm voice coil neodymium magnet 10 inch woofers.
With 1 pcs 220mm magnet/100mm voice coil 18 inch subwoofer with 3ways amplifier module deep bass and powerful
1、Q: How do I know how many pcs line array for my project?
A: Please confirm these information:
1. What occasion used for?
2 .How many audience?
3. What type of project? (Speech, show or?)
2、Q: How to adjust the sound?
A：Our technical team will set up the adjustment depends on your project, then test whole system before shipment. In addition, we will send software to you.
3、Q: Is it OK to print my logo on loudspeaker product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4、Q: How long is the warranty?
A: Normally is 2 years. We will send you inspection photos and testing video to you before shipment, make sure whole system is ok. If there is any problem with the speaker that need to be repaired, please contact us anytime.
