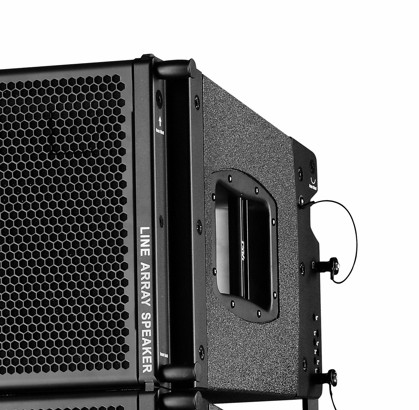

Passive Single 10 Inch Line Array Speaker for Mobile Performances
| Model | TQ10 | TQ118S |
| System Type | Single10 inch line array speaker | Passive single 18 inch line array subwoofer |
| Frequency Range | 55Hz-20kHz | 40Hz-400Hz |
| Frequency Response | 60Hz-18Hz(±3dB) | 45Hz-150Hz(±3dB) |
| Sensitivity | 104dB half space | 108dB SPL 1w/1m |
| Nominal Impedance | 16 ohms | 8 ohms |
| Power Rating | 300W | 650W |
| Maximum SPL@1M | 133dB SPL | 130dB SPL |
| Coverage Pattern | 110°x 15° | / |

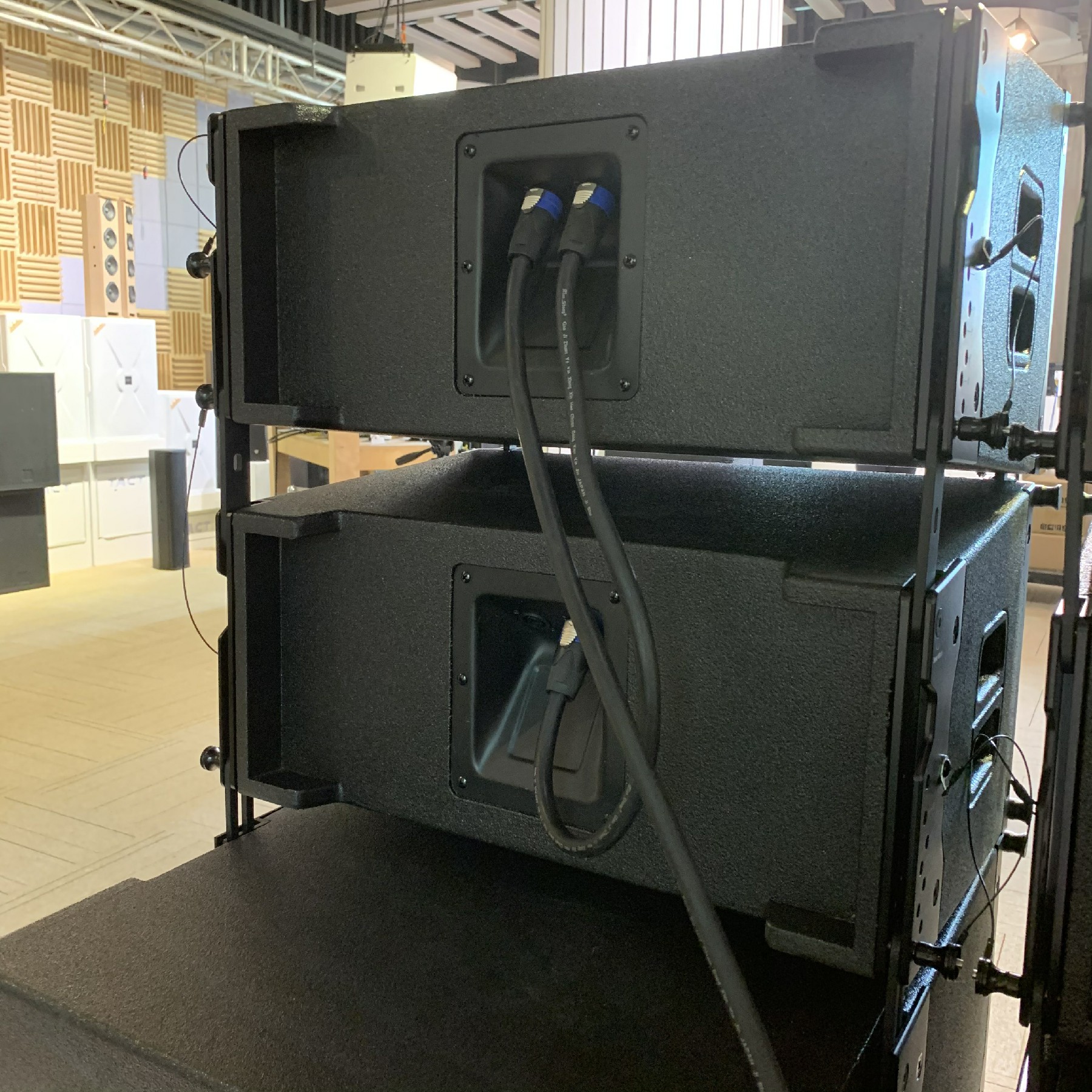

| Input Connectors | Double Neutrik® NL4MP | Double Neutrik® NL4MP |

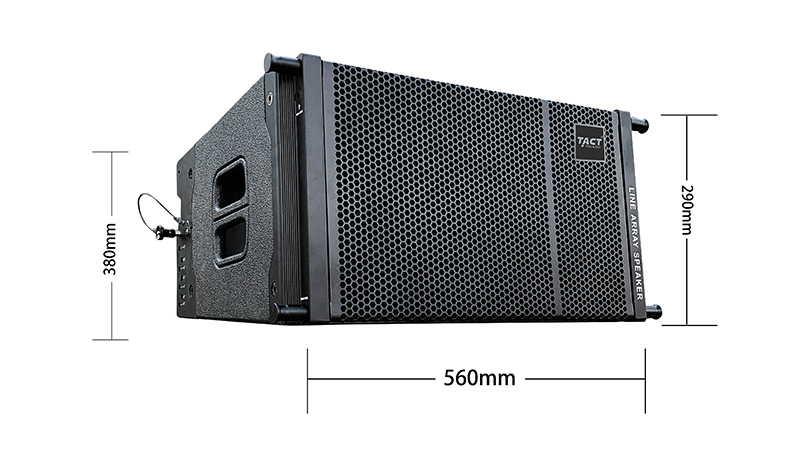

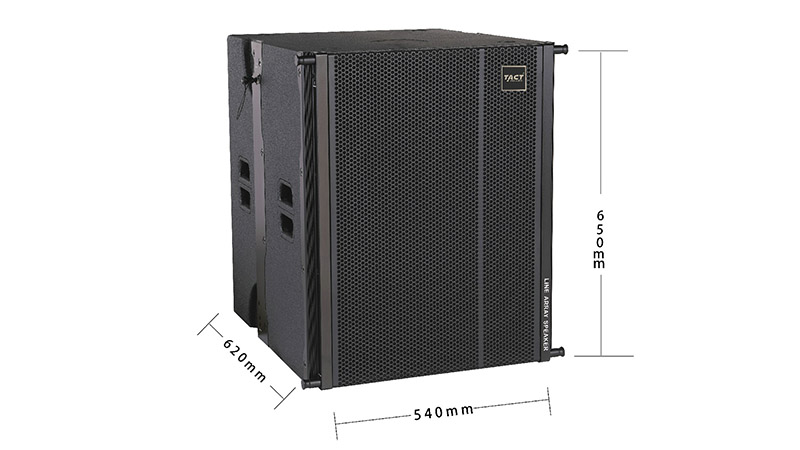

| Dimension(H*W*D) | 290mm x560mm x 380mm | 650mm x 540mm x620mm |
| Net Weight(each) | 16KG | 49KG |
With 2 pcs 25mm neodymium magnet high driver, 1 pcs :65mm voice coil neodymium magnet 10 inch woofers.
With 1 pcs 220mm magnet/100mm voice coil 18 inch subwoofer ，deep bass and powerful
This line array for indoor and outdoor events, stadiums, churches, performing arts venues, theaters, big conference meeting halls where audio system are needed.
1、Q: How do I know how many pcs line array for my project?
A: Please confirm these information:
1. What occasion used for?
2 .How many audience?
3. What type of project? (Speech, show or?)
2、Q: How to adjust the sound?
A：Our technical team will set up the adjustment depends on your project, then test whole system before shipment. In addition, we will send software to you.
3、Q: Is it OK to print my logo on loudspeaker product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4、Q: How long is the warranty?
A: Normally is 2 years. We will send you inspection photos and testing video to you before shipment, make sure whole system is ok. If there is any problem with the speaker that need to be repaired, please contact us anytime.
