TQ206 double 6.5 inch line array speaker ,nice looking ,small size big SPL.
TQ206 double 6.5 inch line array speaker ,nice looking ,small size big SPL.
Double 6.5 inch with 300W, high driver is 44mm voice coil/120mm magnet, woofer is 120mm magnet/50mm voice coil. Single 15 inch woofer with 500W,woofer is 220mm magnet/100mm voice coil.

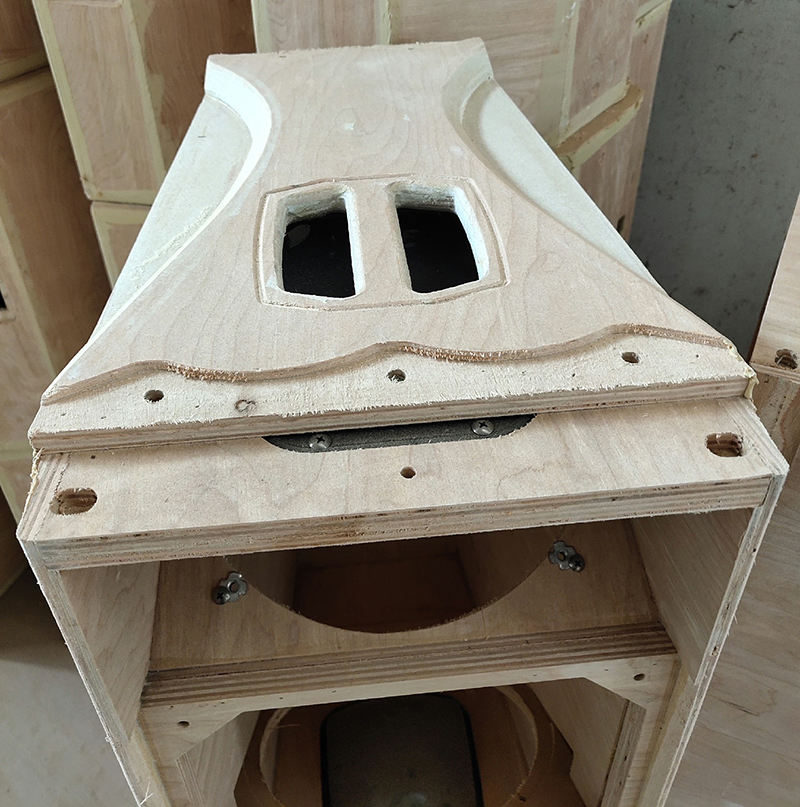

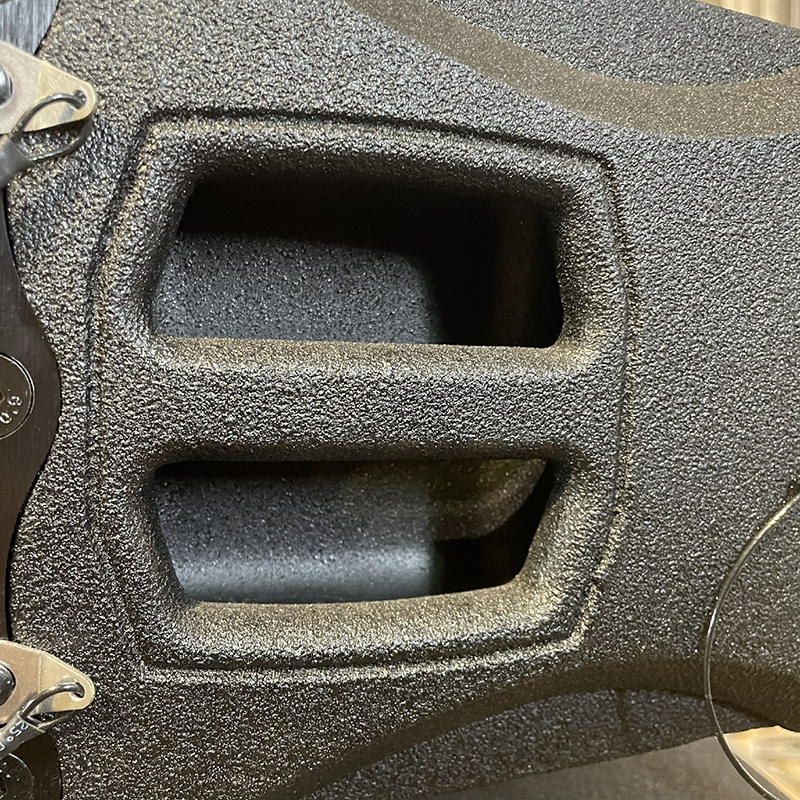

Whole set made by plywood and painted imported polyurea paint, which is anti-corrosive, scratch-resistant, environmental without bad smell. Durable quality even for moving projects.

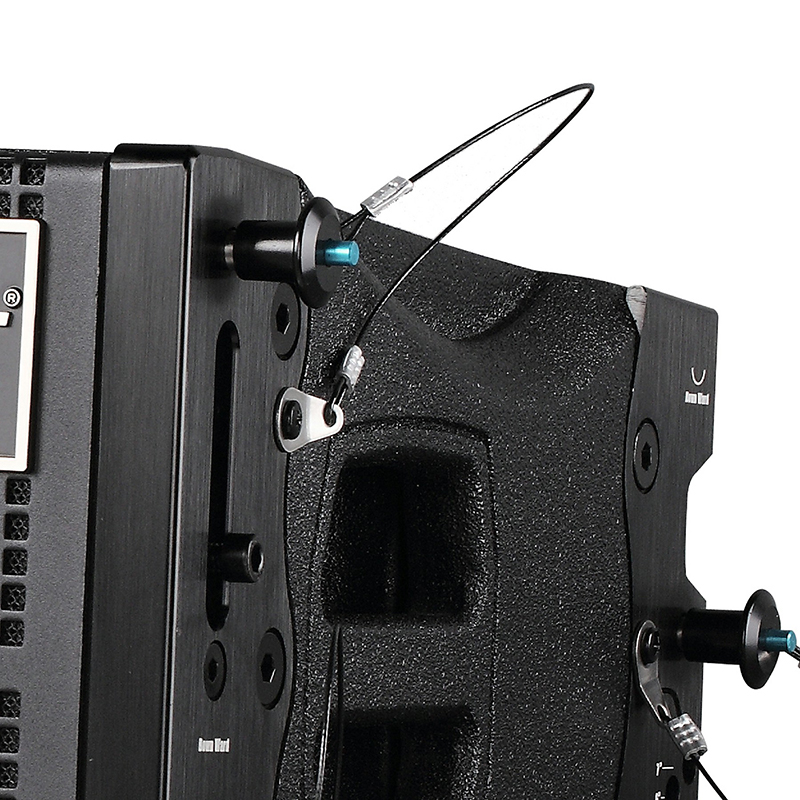

Use flybar to hang them up. The coverage pattern can be adjusted from 0° to 7° degree.
We provide this line array speaker for indoor events, stadiums, churches, performing arts venues, theaters, big conference meeting halls where audio system are needed.
| Model | TQ206 | TQ06S |
| System Type | Passive double 6.5 inch line array speaker | Single 15 inch line array subwoofer |
| Frequency Range | 60Hz-20kHz | 45Hz-400Hz |
| Frequency Response | 70Hz-18kHz(±3dB) | 50Hz-180Hz(±3dB) |
| Sensitivity | 100dB SPL 1w/1m | 99dB SPL 1w/1m |
| Nominal Impedance | 16 ohms | 8 ohms |
| Power Rating | 300W | 500W |
| Maximum SPL@1M | 124dB SPL | 126dB SPL |
| Coverage Pattern | 110°x 15° | / |
| Input Connectors | Double Neutrik® NL4MP | Double Neutrik® NL4MP |

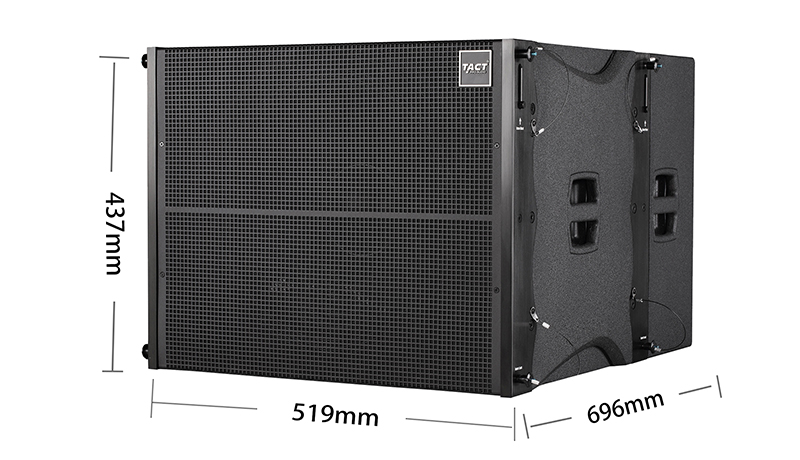

| Dimension(H*W*D) | 204mm*515mm*298mm | 437mm*519mm*538mm |
| Net Weight(each) | 15KG | 40KG |
With1 pcs 44mm voice coil/120mm magnet as high driver, 2 pcs 120mm magnet/50mm voice coil 6.5 inch woofers.
With 1 pcs 220mm magnet/100mm voice coil 15 inch subwoofer
This line array for indoor small events, stadiums, churches, performing arts venues, theaters, big conference meeting halls where audio system are needed.
1、Q: How do I know how many pcs line array for my project?
A: Please confirm these information:
1. What occasion used for?
2 .How many audience?
3. What type of project? (Speech, show or?)
2、Q: How to adjust the sound?
A：Our technical team will set up the adjustment depends on your project, then test whole system before shipment. In addition, we will send software to you.
3、Q: How long is the warranty?
A: Normally is 2 years. We will send you inspection photos and testing video to you before shipment, make sure whole system is ok. If there is any problem with the speaker that need to be repaired, please contact us anytime.
