Passive pa speaker
Professional speakers manufacturer providing OEM & ODM services
Language
Professional speakers manufacturer providing OEM & ODM services
Suitable for multi-function hall ,church,music hall ,hotel lobby and many other indoor occasions
PV series Multifunctional speaker , with Compact design
3 sizes: single 10inch,single 12 inch and single 15 inch for choice.
10 inch is 300W.
12 inch is 350W.
15 inch has 400W,500W and 600W

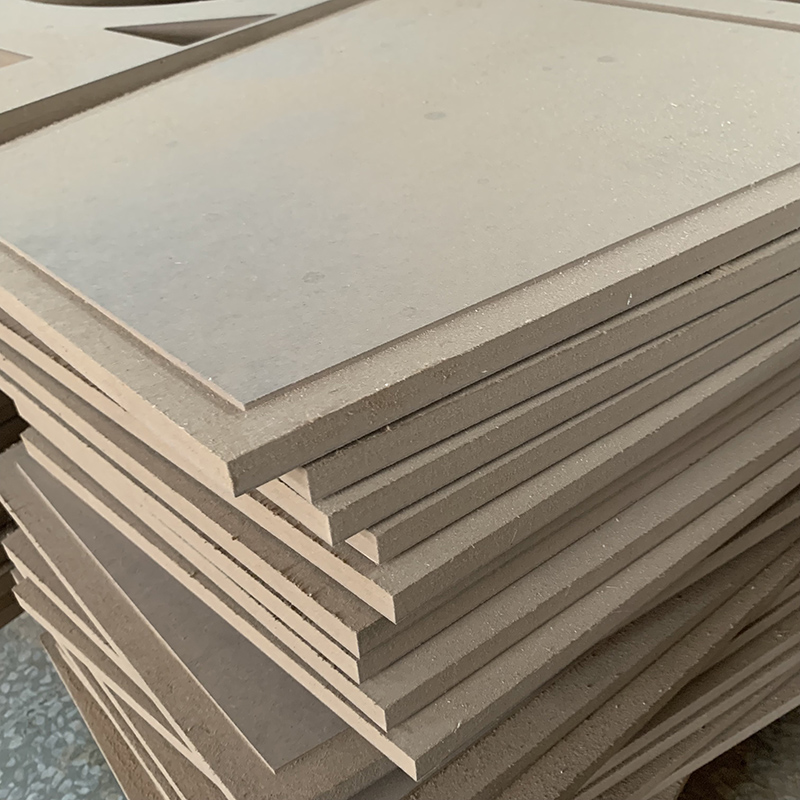

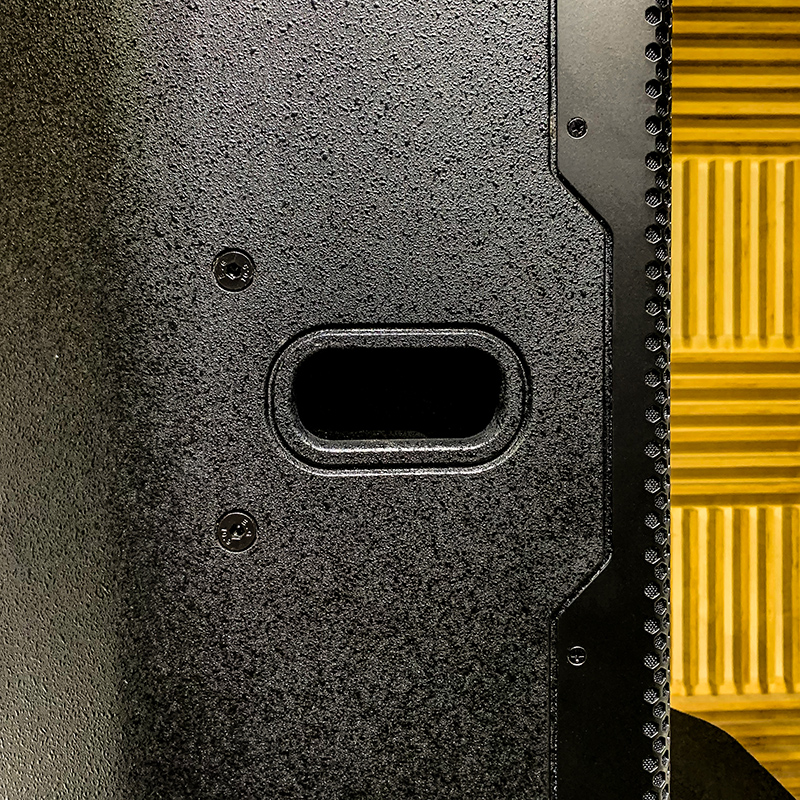

They made by MDF, two strong wooden handle in two sides.

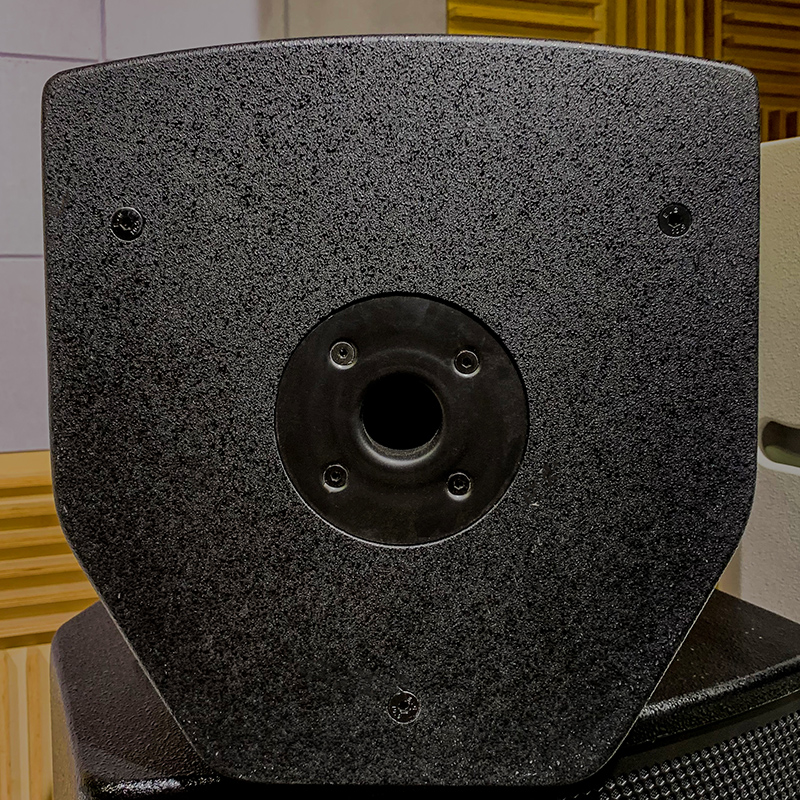

Many hoist holes for lots of hoisting methods.Bottom also with stand pole.

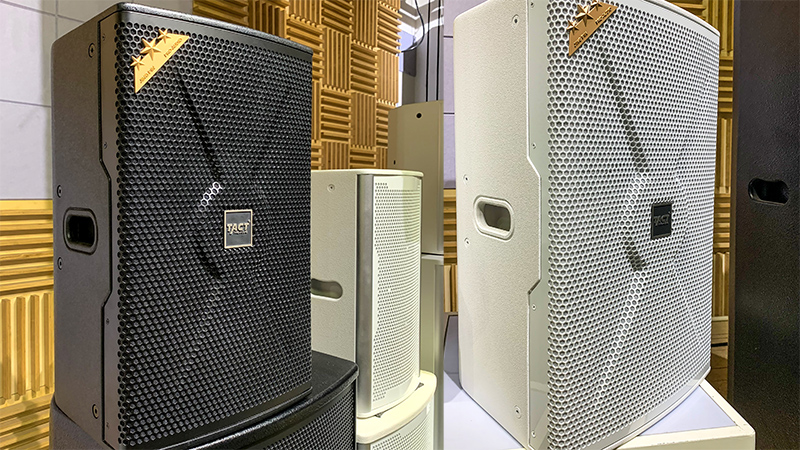

White color and black color for choice.
| Model | PV12 |
| System Type | Single 12 inch full frequency speaker |
| Frequency Range | 45Hz-20Hz |
| Frequency Response | 50Hz-18Hz(±3dB) |
| Sensitivity | 97dB SPL 1w/1m |
| Nominal Impedance | 8 ohms |
| Power Rating | 350W |
| Maximum SPL@1M | 123dB SPL |
| Coverage Pattern | 90°x 60° |
| Input Connectors | Double Neutrik® NL4MP |

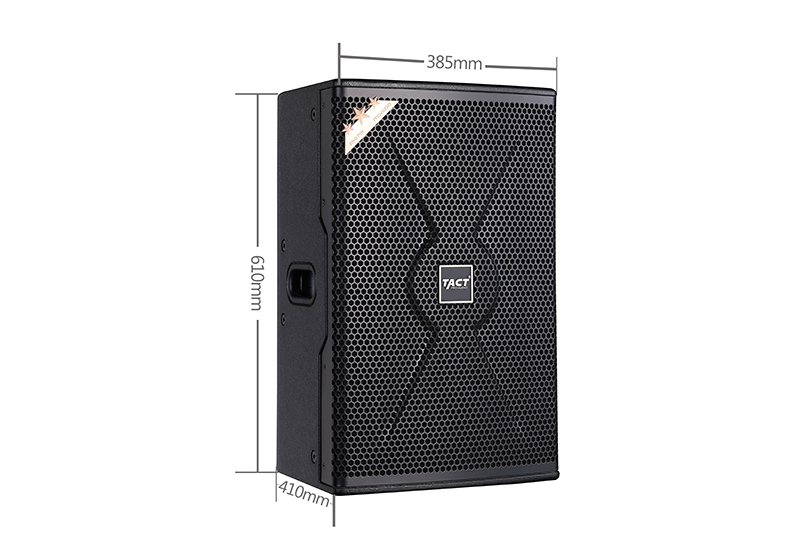

| Dimension(H*W*D) | 610mm*385mm*410mm |
| Net Weight(each) | 21.6KG |
With 1 pcs 44mm voice coil high driver, 1 pcs:170mm magnet/75mm voice coil 12 inch woofers.
This model suitable for multi-function hall ,church,music hall ,hotel lobby and many other indoor occasions
1、Q: How do I know how many pcs line array for my project?
A: Please confirm these information:
1. What occasion used for?
2. How many audience?
3. What type of project? (Speech, show or?)
2、Q: How to adjust the sound?
A：Our technical team will set up the adjustment depends on your project, then test whole system before shipment. In addition, we will send software to you.
3、Q: What is the powered speaker?
A: Powered speaker also named active speaker, with amplifier and processor in active module. So no need to use extra amplifier and processor, easy to use and control.
4、Q: How long is the warranty?
A: Normally is 2 years. We will send you inspection photos and testing video to you before shipment, make sure whole system is ok. If there is any problem with the speaker that need to be repaired, please contact us anytime.
