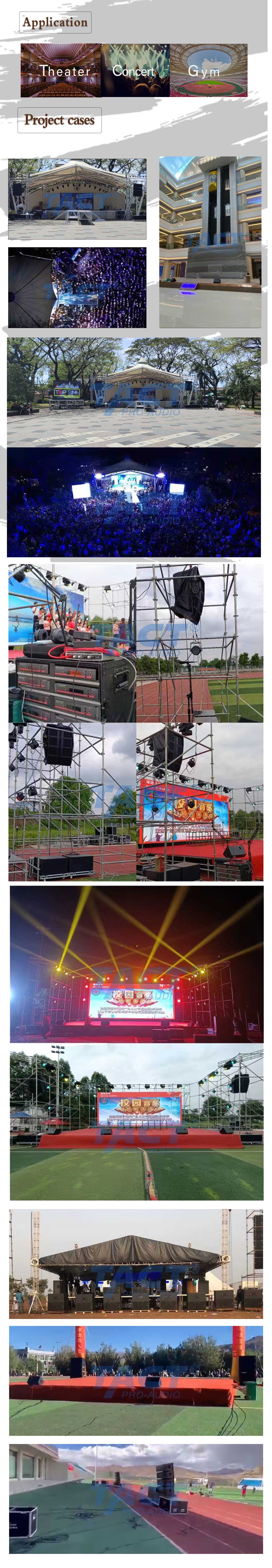

suitable for many outdoorapplication. for example: stadiums, live show,churches, theaters, big conference meeting hall.
This is L series dual 12 inch line array system.
Double 12 inch line array is 2 way big power line array speakers system.it have thick bass ，very powerful ，with high temperature resistance and longer life . Sound spres fartehr and clearer.

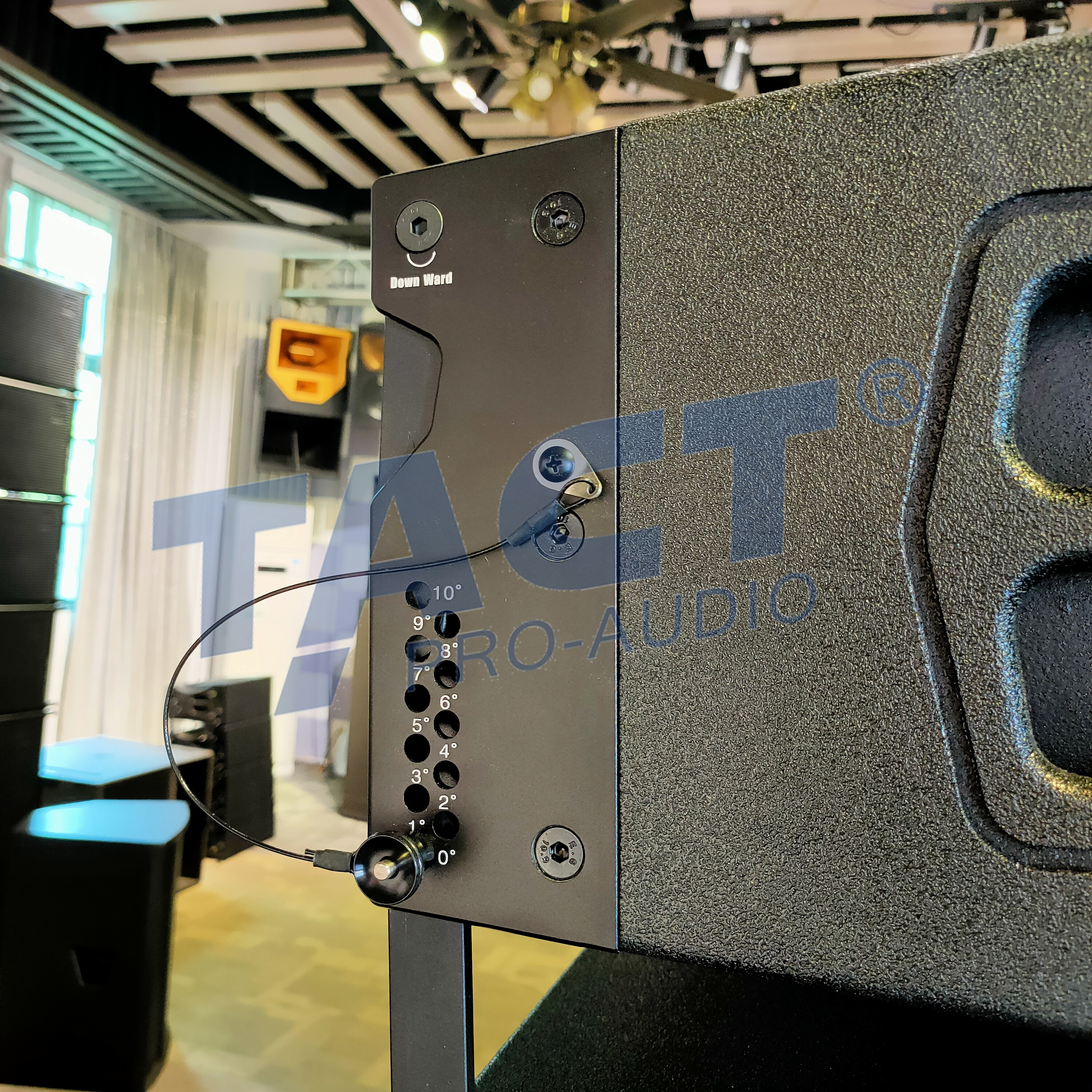

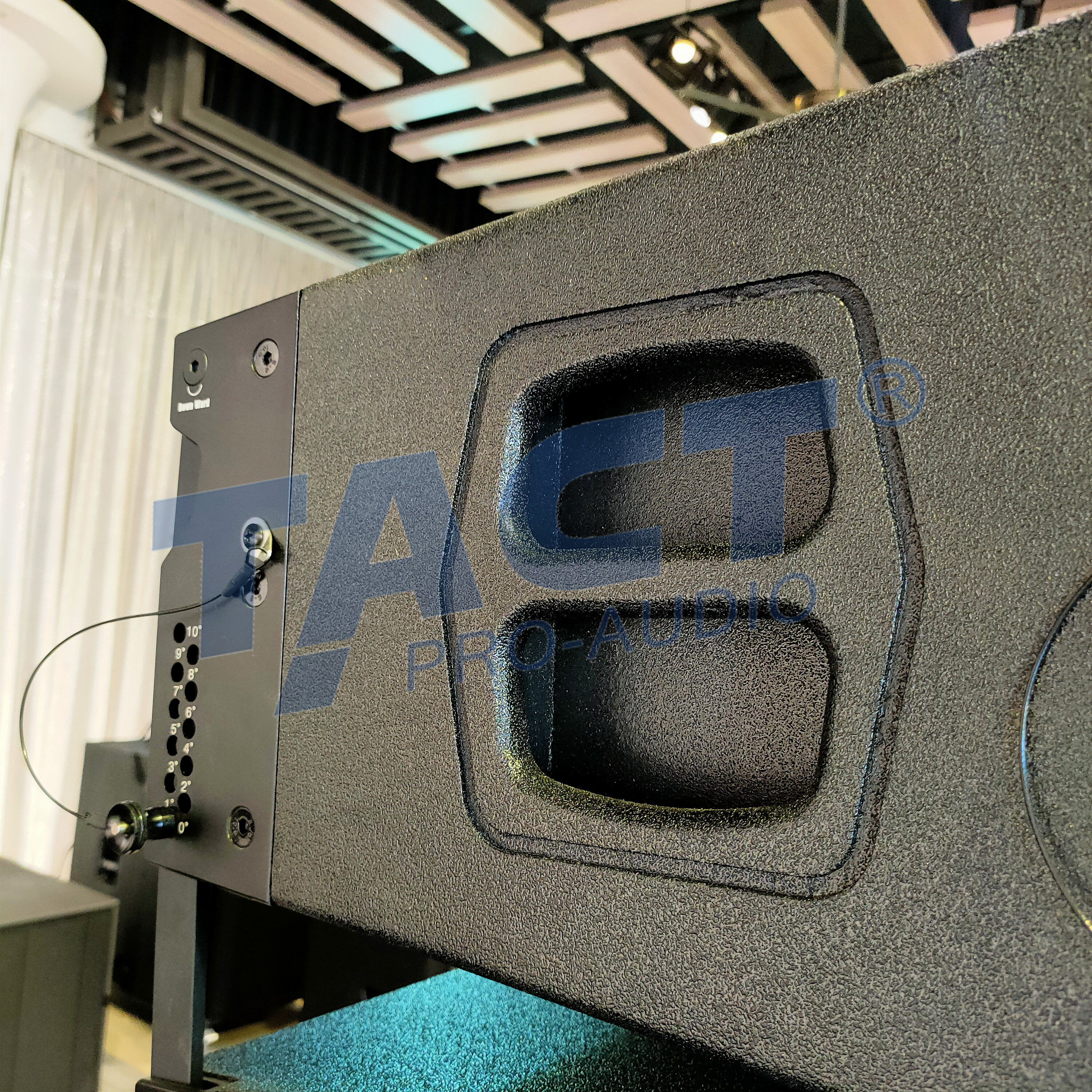

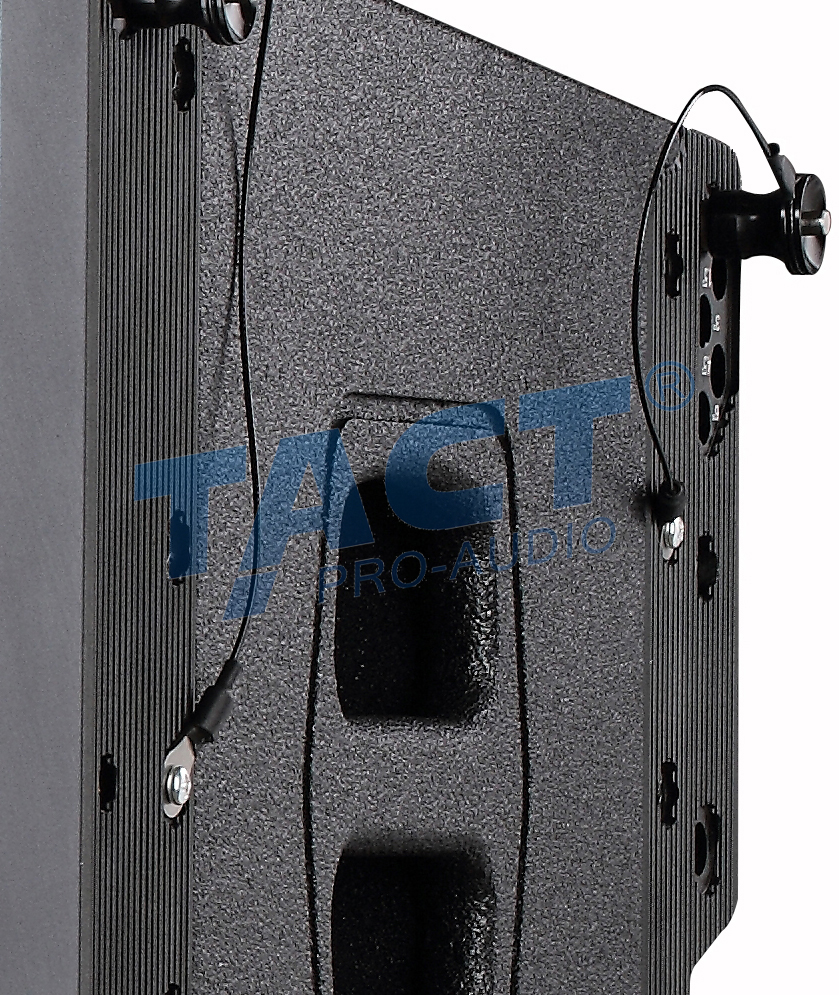

Use flybar to hang them up. The coverage pattern can be adjusted from 0° to 10° degree.
This model can be active by built-in DSP active module, very high sensitivity, enable for remote control,easy for operation. And we will offer adjustment service before shipment. suitable for many outdoorapplication. for example:stadiums, live show,churches, theaters, big conference meeting hall.
| Model | L212 | L218S |
| System Type: | Passive double 12 inch line array speaker | Passive dual 18 inch line array subwoofer |
| Frequency Range: | 50Hz-20kHz | 30Hz-500Hz |
| Frequency Response: | 65Hz-18kHz(±3dB) | 35Hz-450Hz(±3dB) |
| Sensitivity: | 114dB SPL 1w/1m | 104dB SPL 1w/1m |
| Nominal Impedance: | 8ohms | 4oms |
| Power Rating: | 1000W | 1600W |
| Maximum SPL@1M: | 141dB SPL | 143dB SPL |
| Coverage Pattern: | 110°x 5° | / |
| Input Connectors: | Double Neutrik® NL4MP | Double Neutrik® NL4MP |

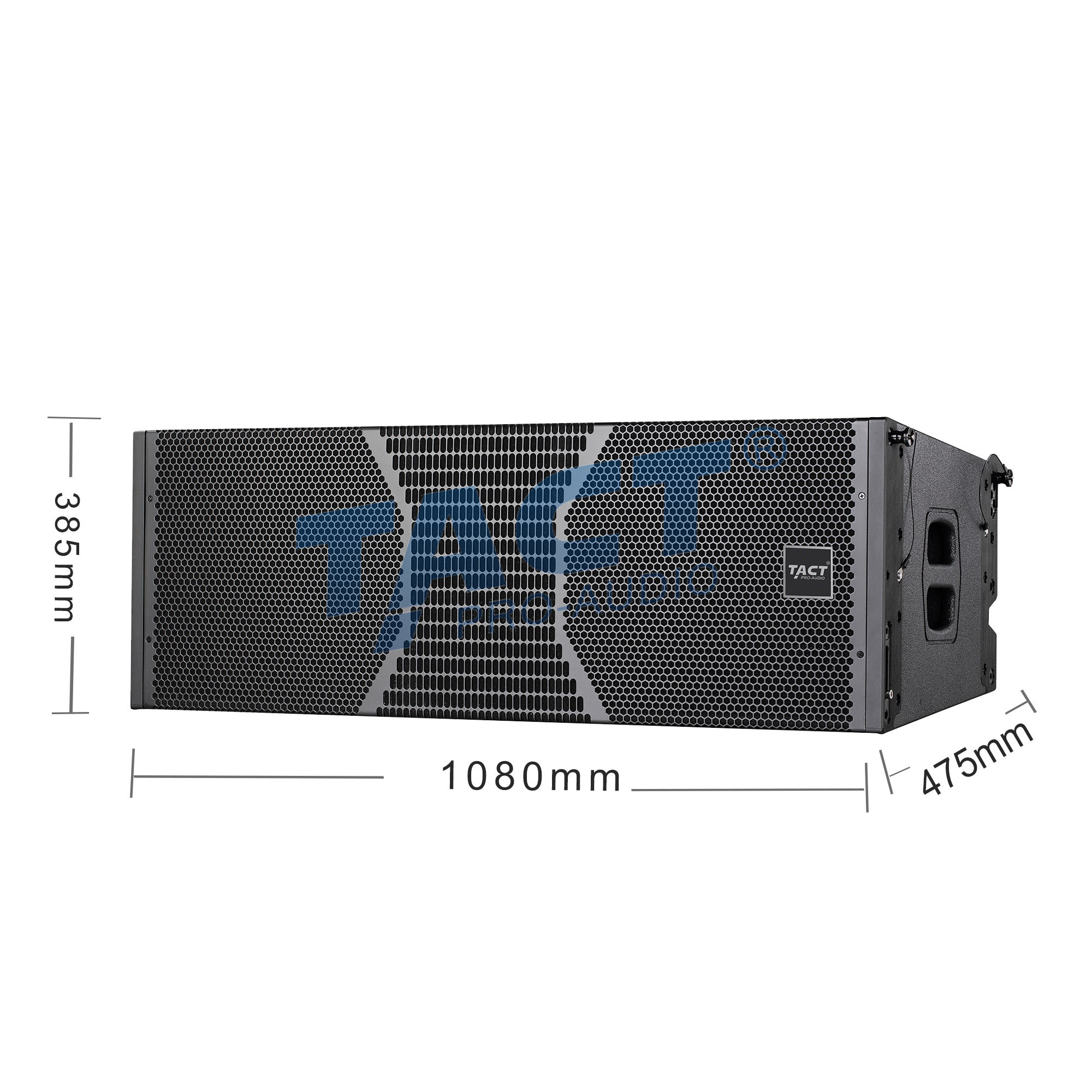

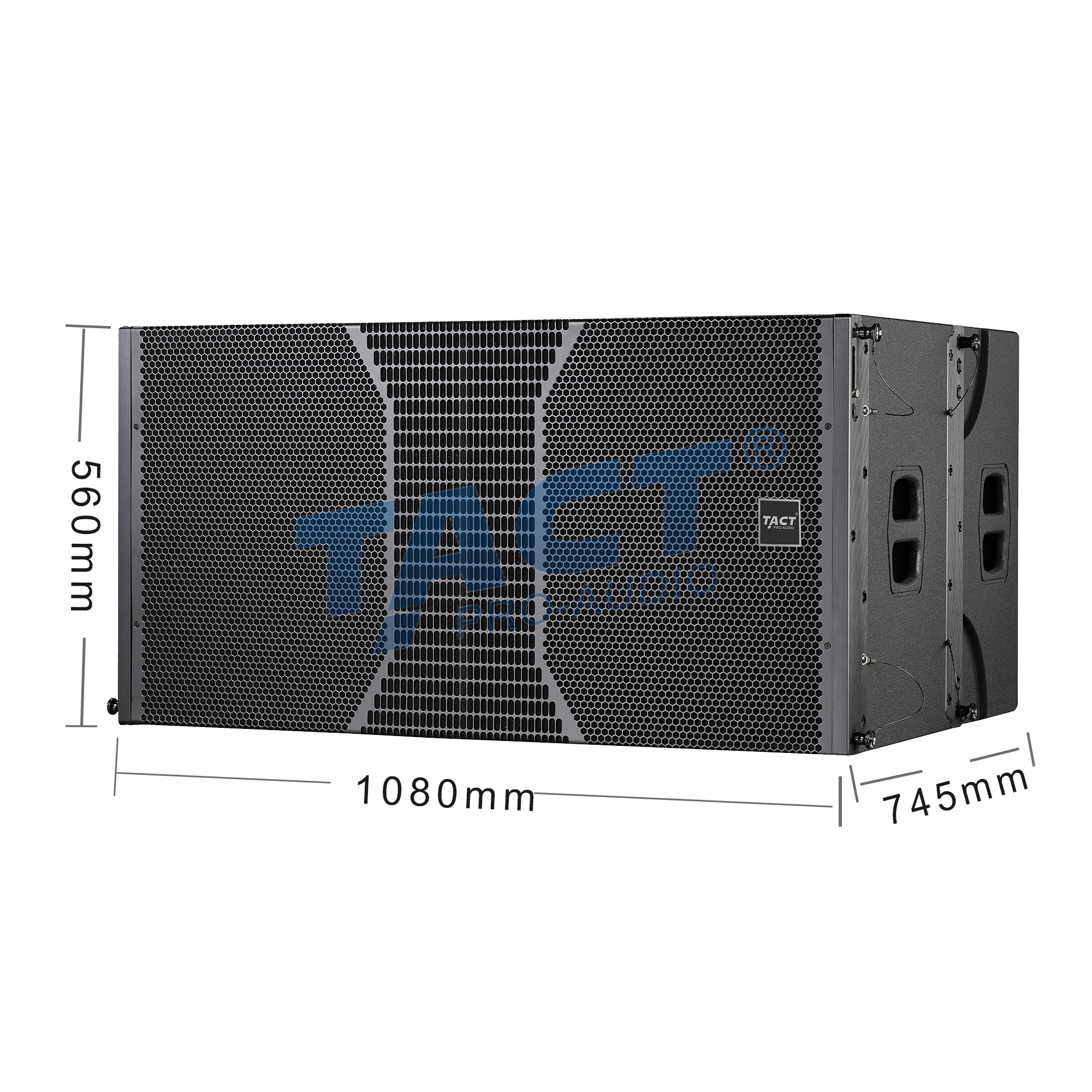

| Dimension(H*W*D): | 385*1080*475mm | 560*1080*750mm |
| Net Weight(each): | 48KG | 90KG |
L212
With 2 pcs 44mm neodymium voice coil high driver, 2 pcs 75mm neodymium voice coil 12 inch woofers

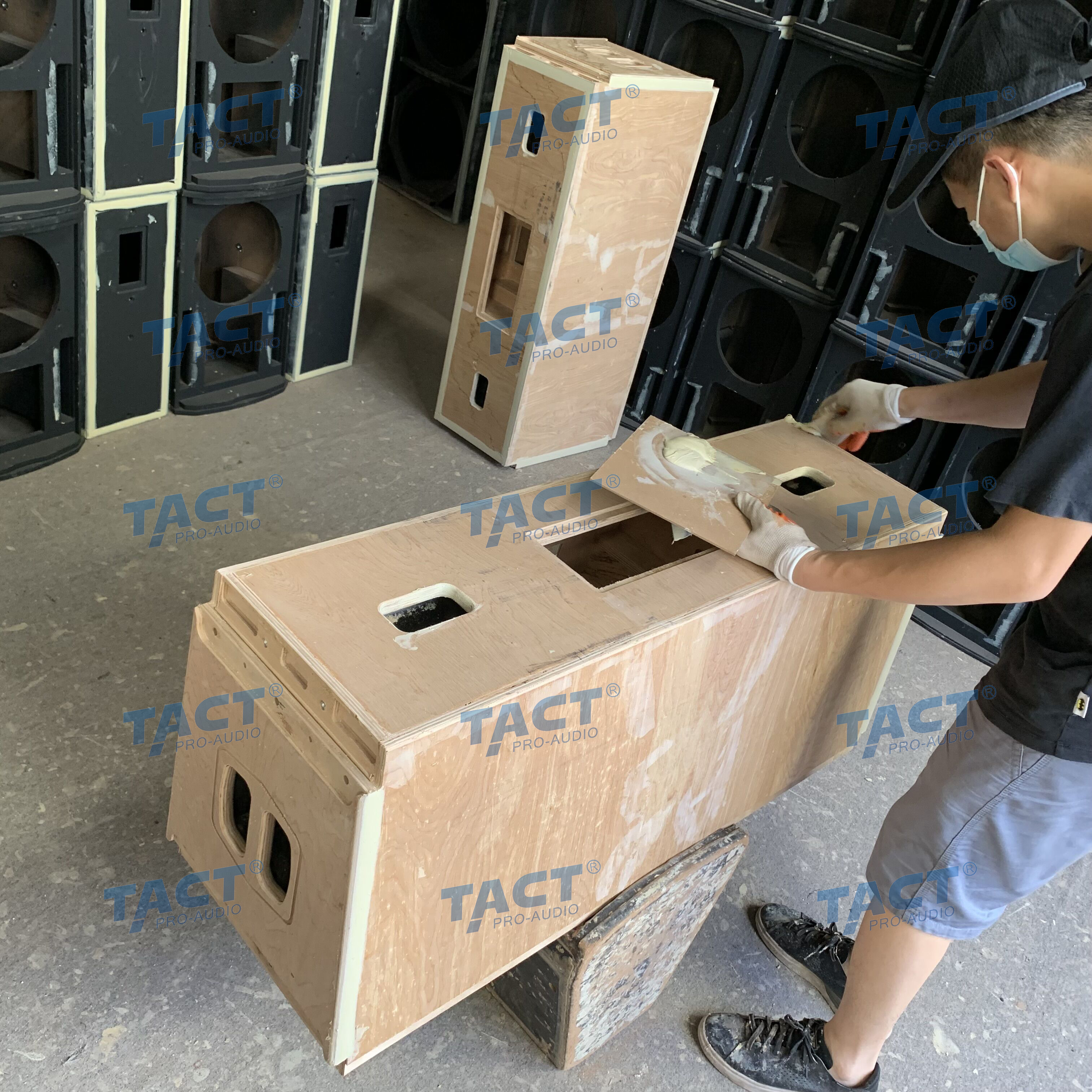

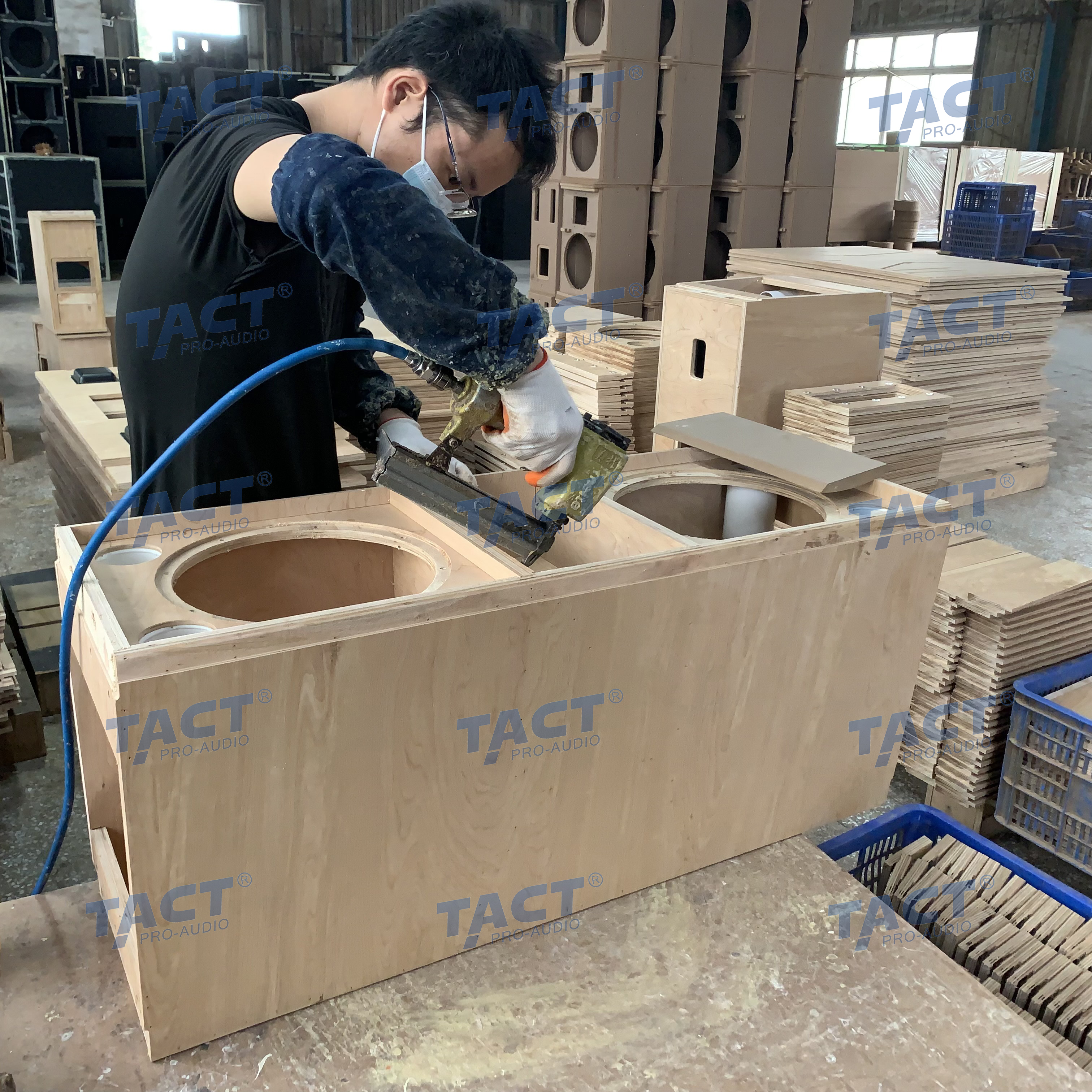

1. Speaker boxes production
2. Fit the boards together
3. Speaker boxes paint repairing(twice)
4. Polish the edges(twice)
5. Speaker boxes paint repairing(twice)
6. Polish the edges(twice)
7. Speaker boxes painting
8. Assemble the speaker box

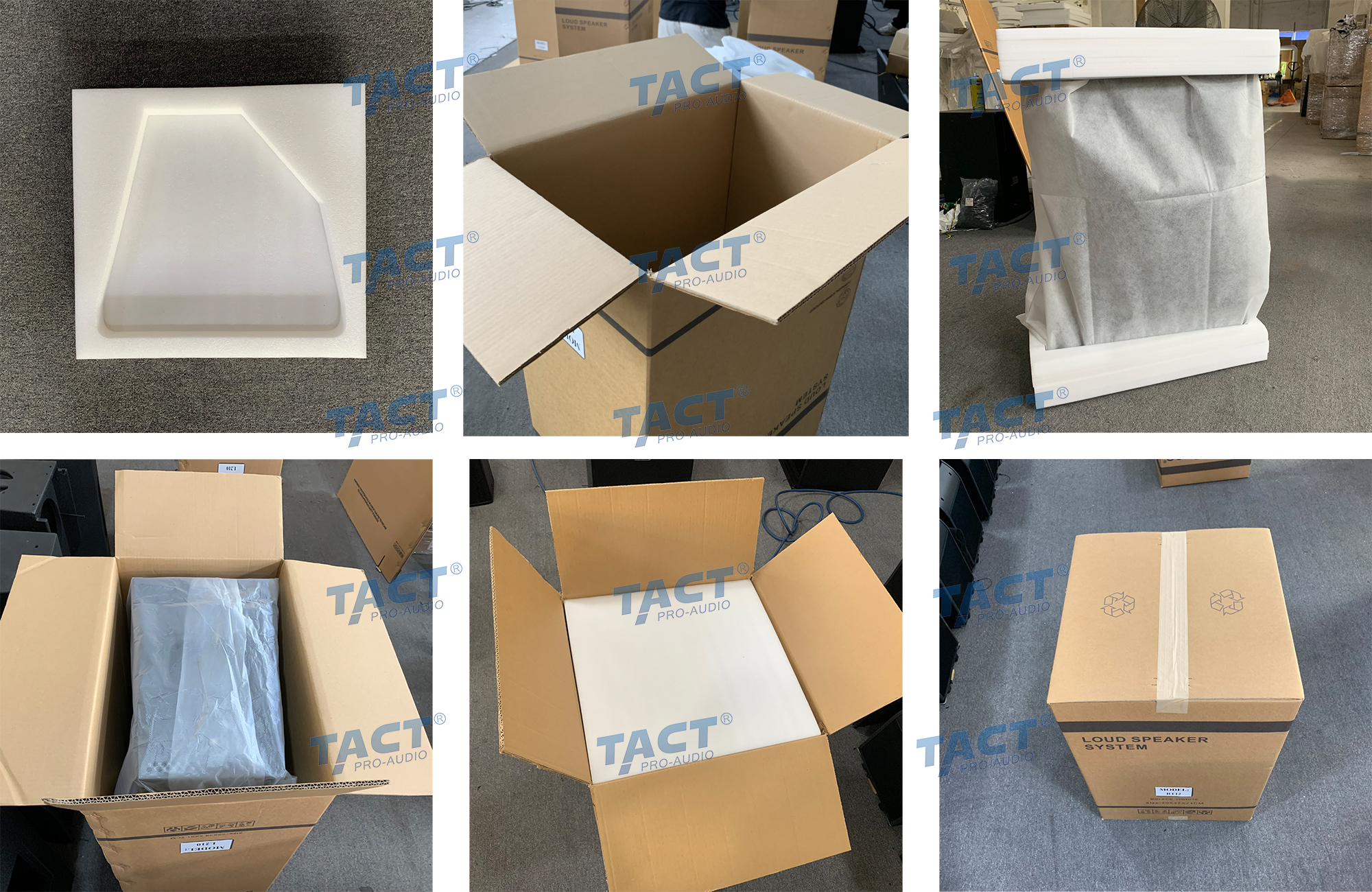

The quality of our carton box is very good, imported material, 7mm thickness, 5 layers. So it can protect speaker very well
1、Q: How do I know how many pcs line array for my project?
A: Please confirm these information:
1. What occasion used for?
2. How many audience?
3. What type of project? (Speech, show or?)
2、Q: How to adjust the sound?
A: Our technical team will set up the adjustment depends on your project, then test whole system before shipment. In addition, we will send software to you.
3、 Is it OK to print my logo on loudspeaker product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4、Q: How long is the warranty?
A: Normally is 2 years. We will send you inspection photos and testing video to you before shipment, make sure whole system is ok. If there is any problem with the speaker that need to be repaired, please contact us anytime.
