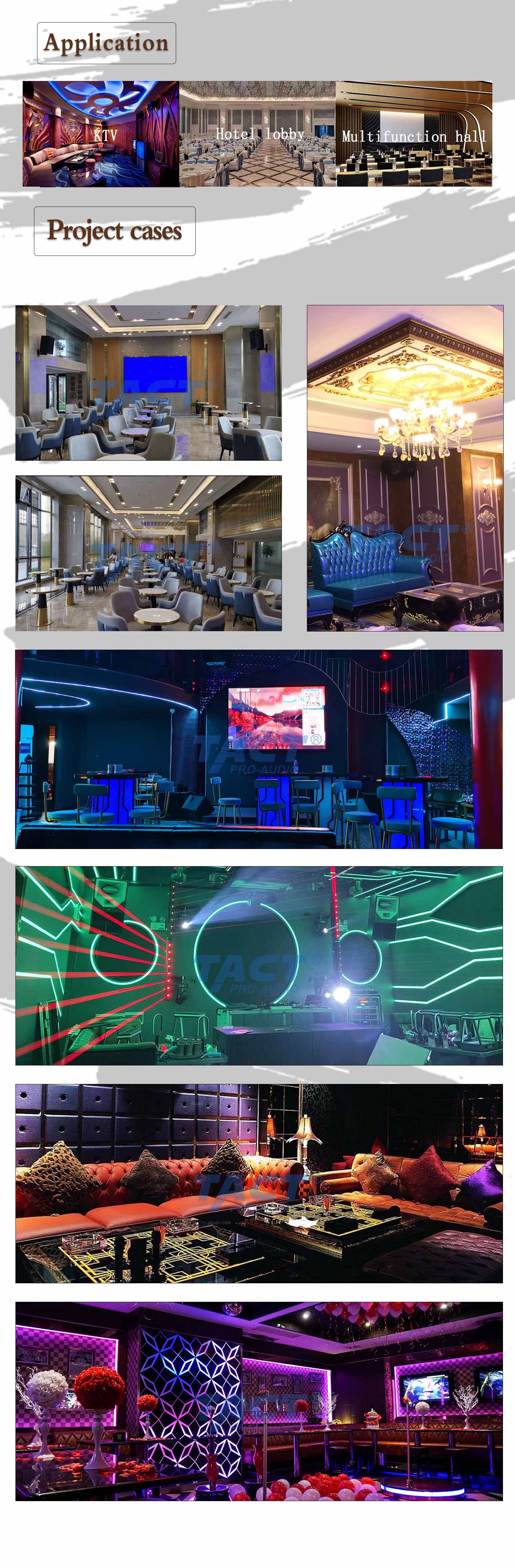

Suitable for multi-function hall ,church,music hall ,hotel lobby and many other indoor occasions

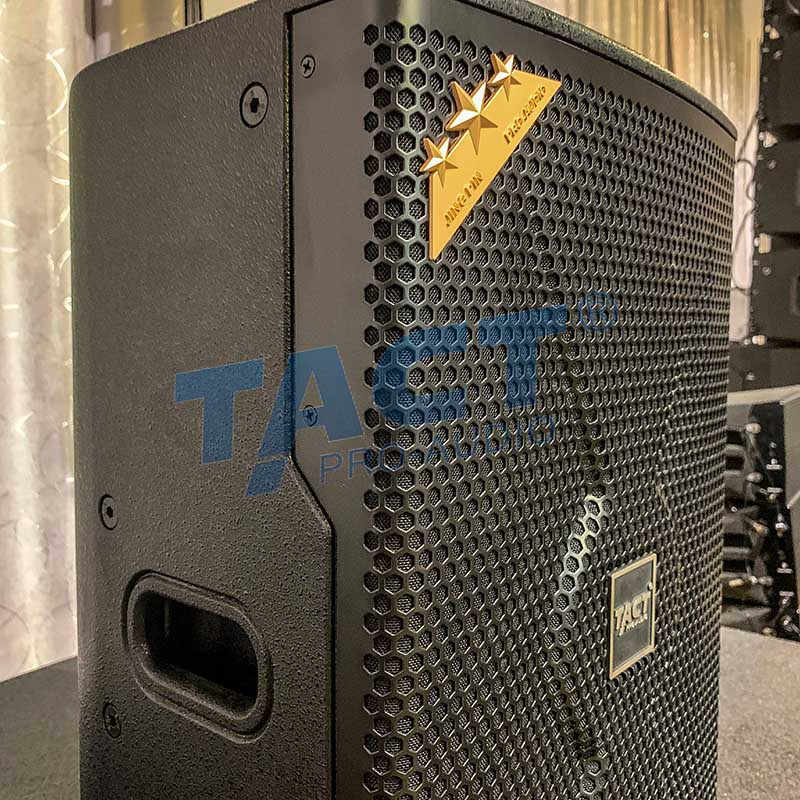

PV series Multifunctional speaker , with Compact design
3 sizes: single 10inch,single 12 inch and single 15 inch for choice.
10 inch is 300W.
12 inch is 350W.
15 inch has 400W,500W and 600W
They made by MDF, two strong wooden handle in two sides.
Many hoist holes for lots of hoisting methods.Bottom also with stand pole.
White color and black color for choice.
Suitable for multi-function hall ,church,music hall ,hotel lobby and many other indoor occasions
| Model | PV15 | System Type | Single 15 inch full frequency speaker |
| Frequency Range | 40Hz-20Hz | Frequency Response | 50Hz-18Hz(±3dB) |
| Sensitivity | 105dB SPL 1w/1m | Nominal Impedance | 8 ohms |
| Power Rating | 600W | Maximum SPL@1M | 136dB SPL |
| Coverage Pattern | 90°x 60° | Input Connectors | Double Neutrik® NL4MP |

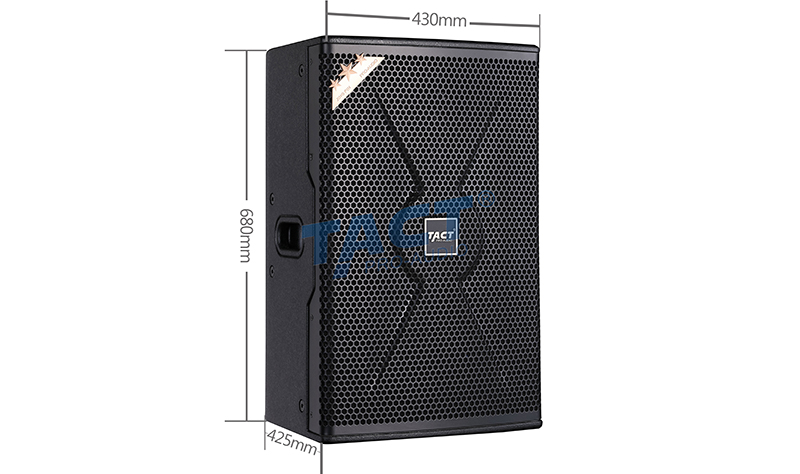

| Dimension(H*W*D) | 680mm*430mm*425mm | Net Weight(each) | 33.7KG |
With 1 pcs 75mm voice coil high driver, 1 pcs :220mm magnet/100mm voice coil 15 inch woofers.

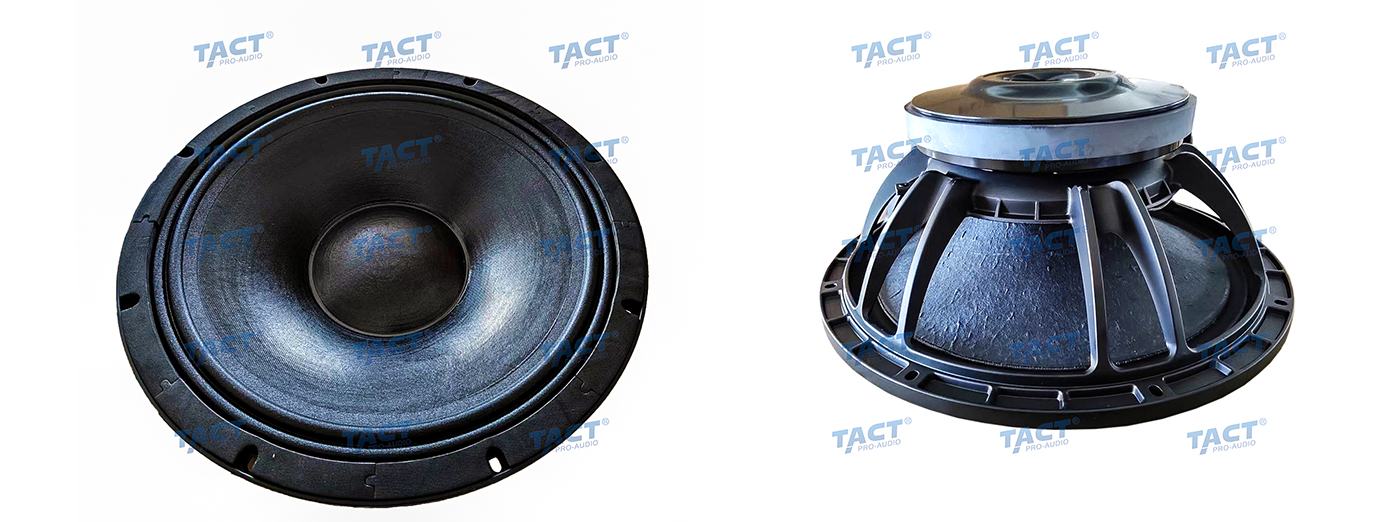

PV15 220 bass

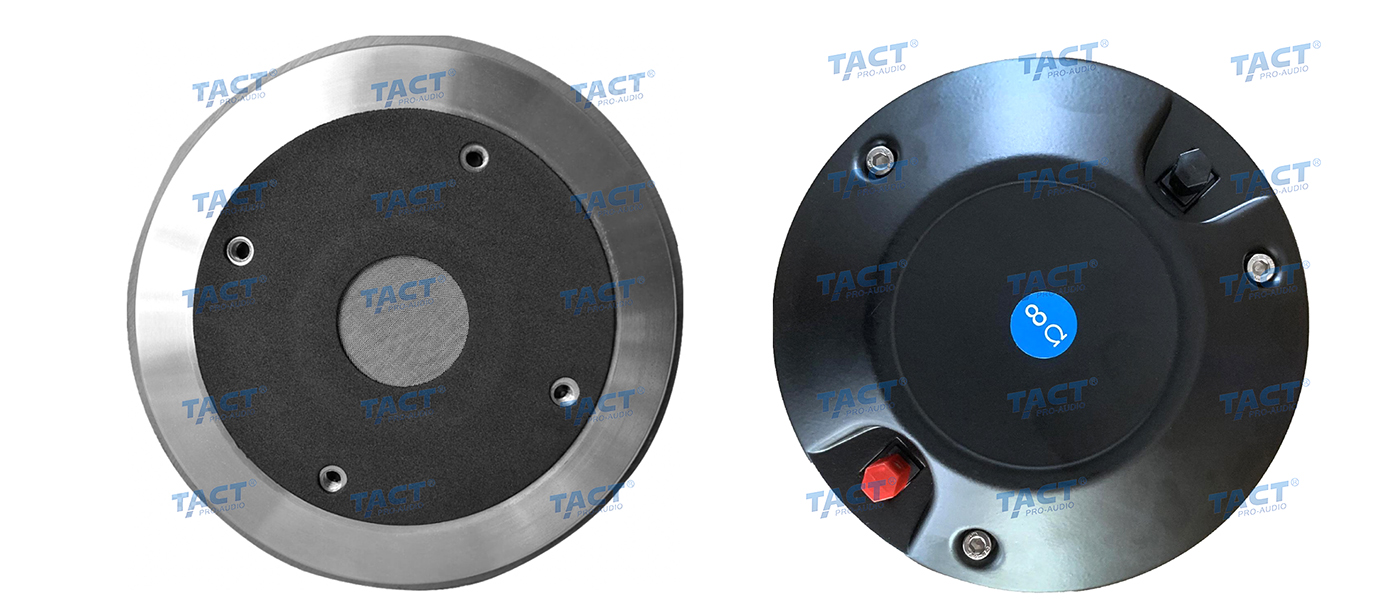

PV15 75 treble
This model suitable for multi-function hall ,church,music hall ,hotel lobby and many other indoor occasions

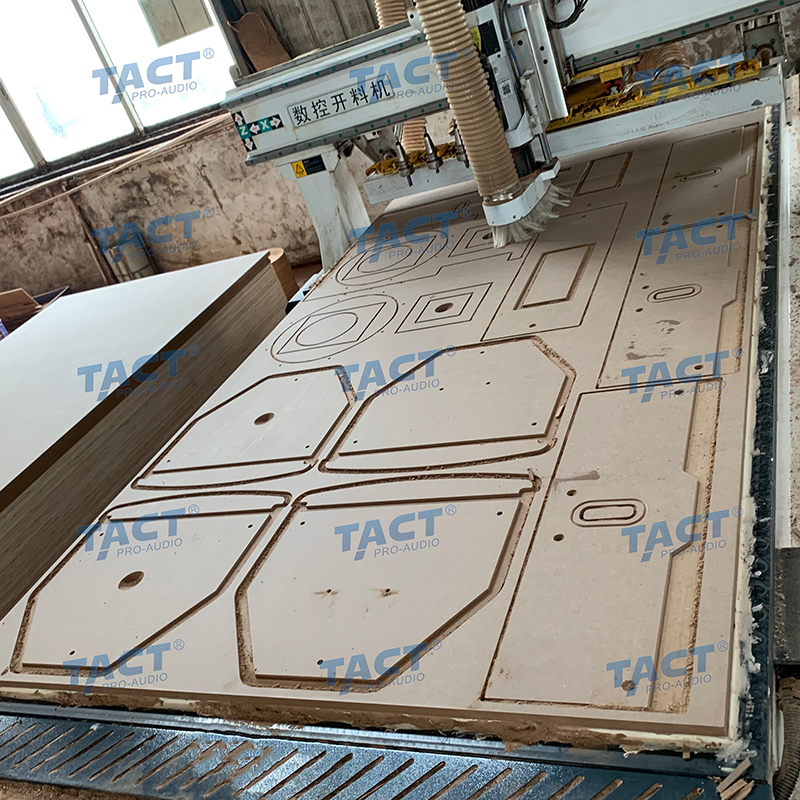

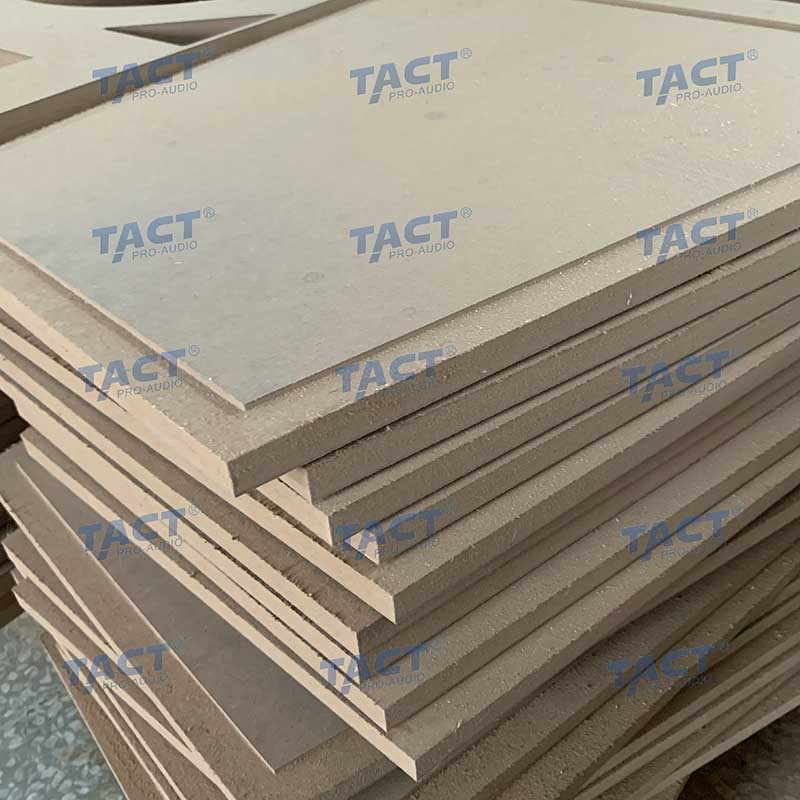

1. Speaker boxes production

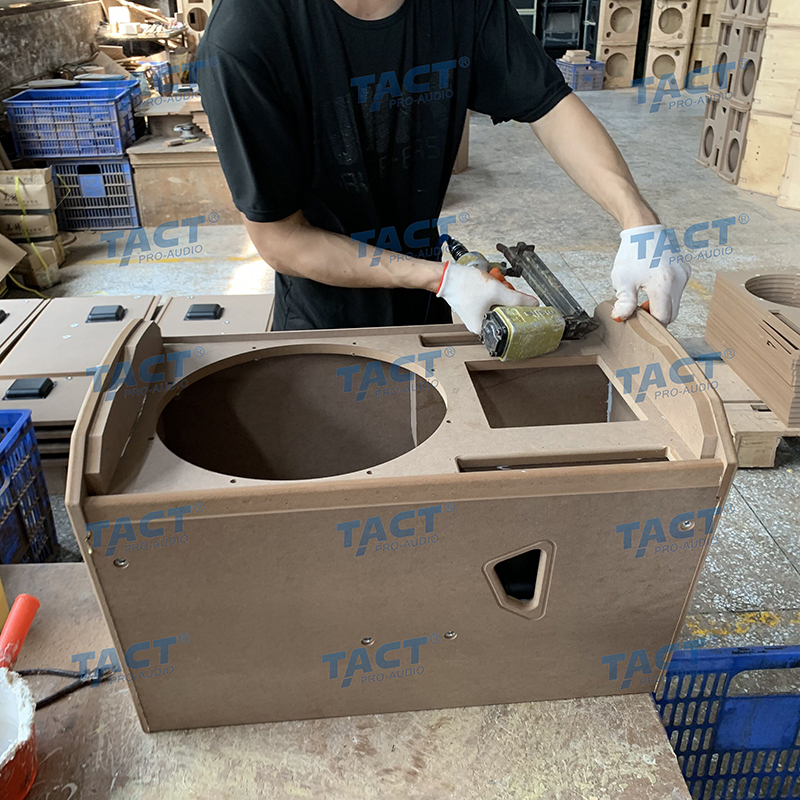

2. Fit the boards together

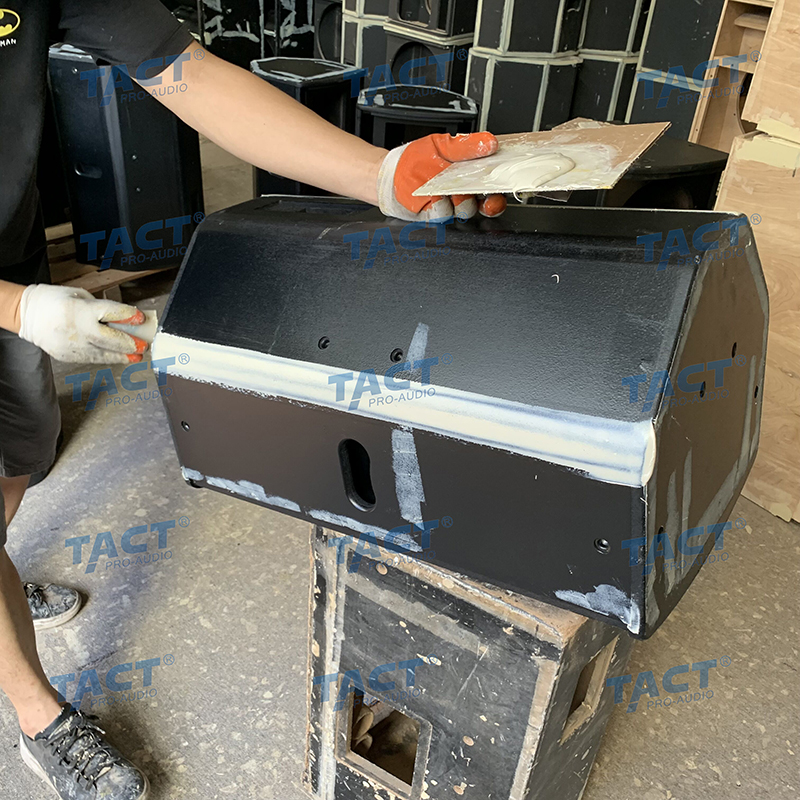

3. Speaker boxes paint repairing(twice)
3. Speaker boxes paint repairing(twice)

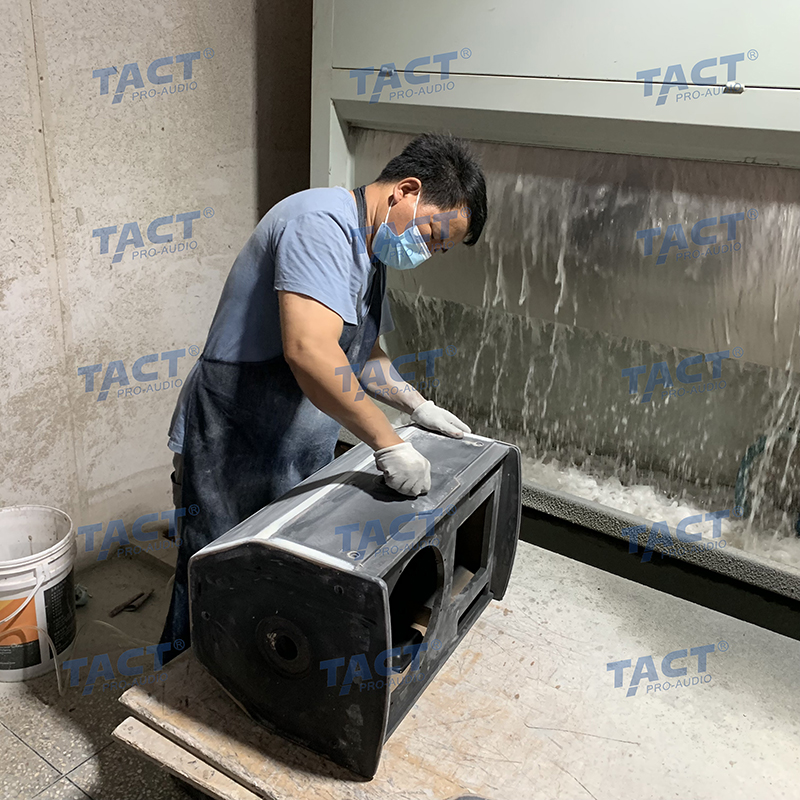

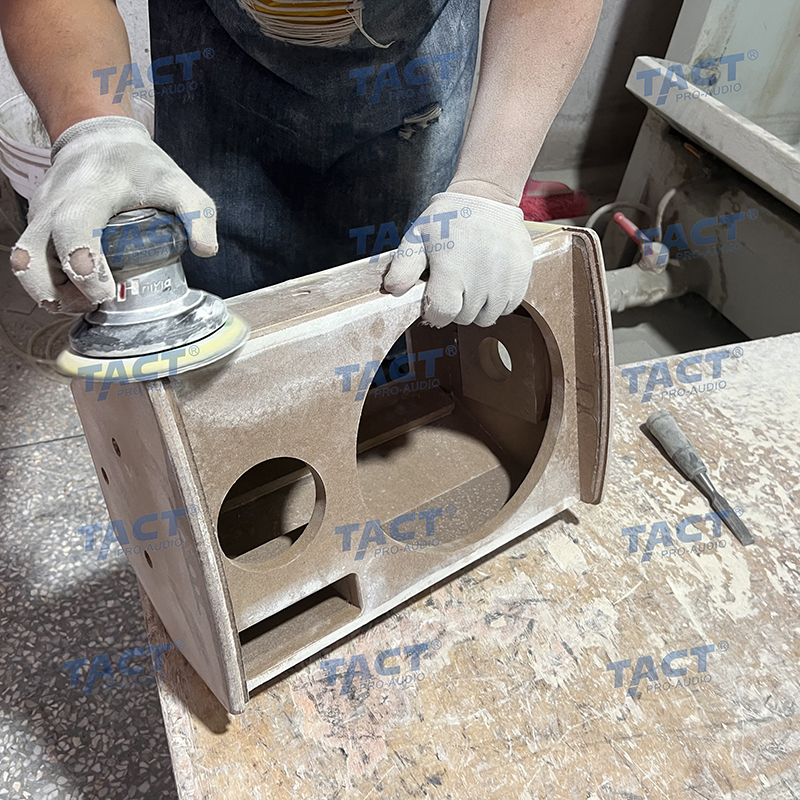

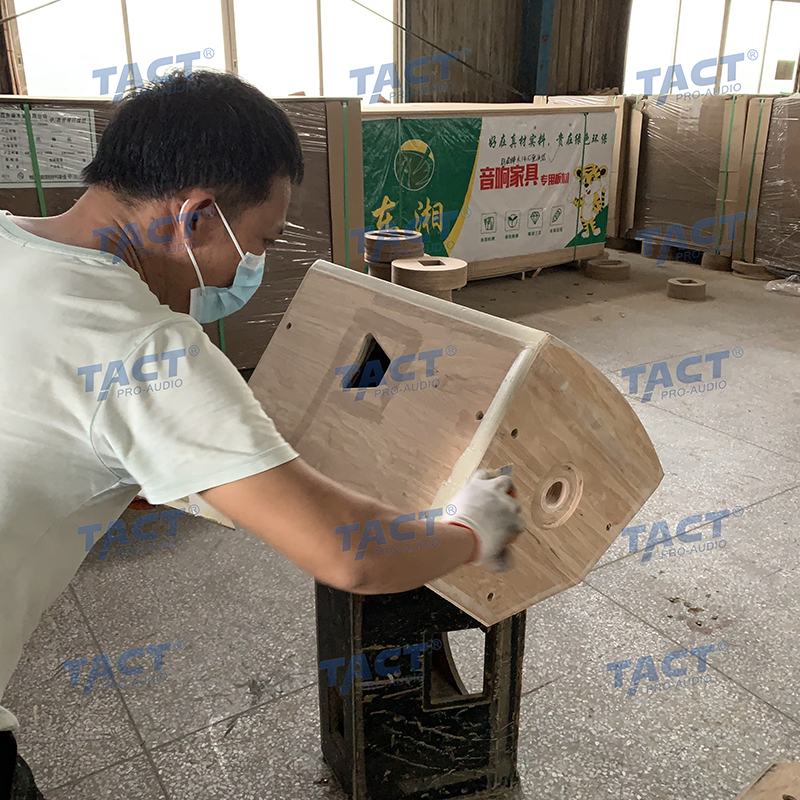

4. Polish the edges(twice)
4. Polish the edges(twice)

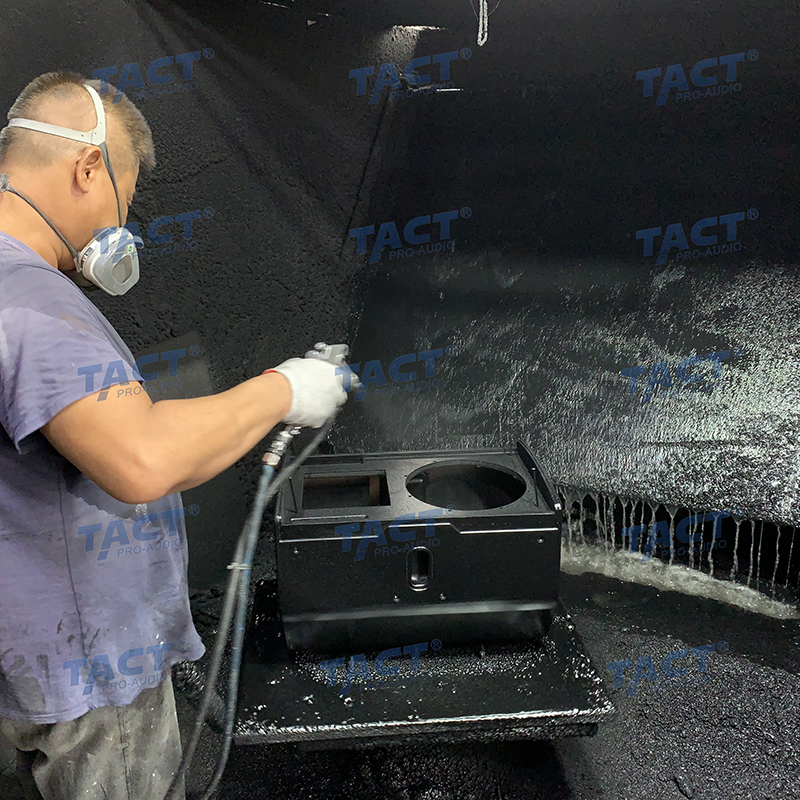

5. Speaker boxes painting

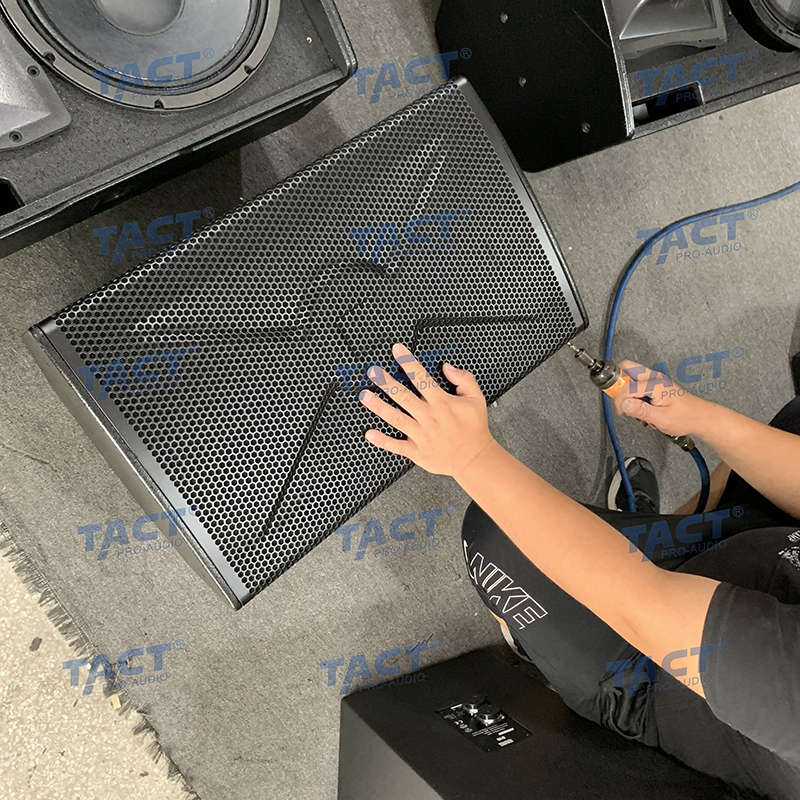

6. Assemble the speaker box

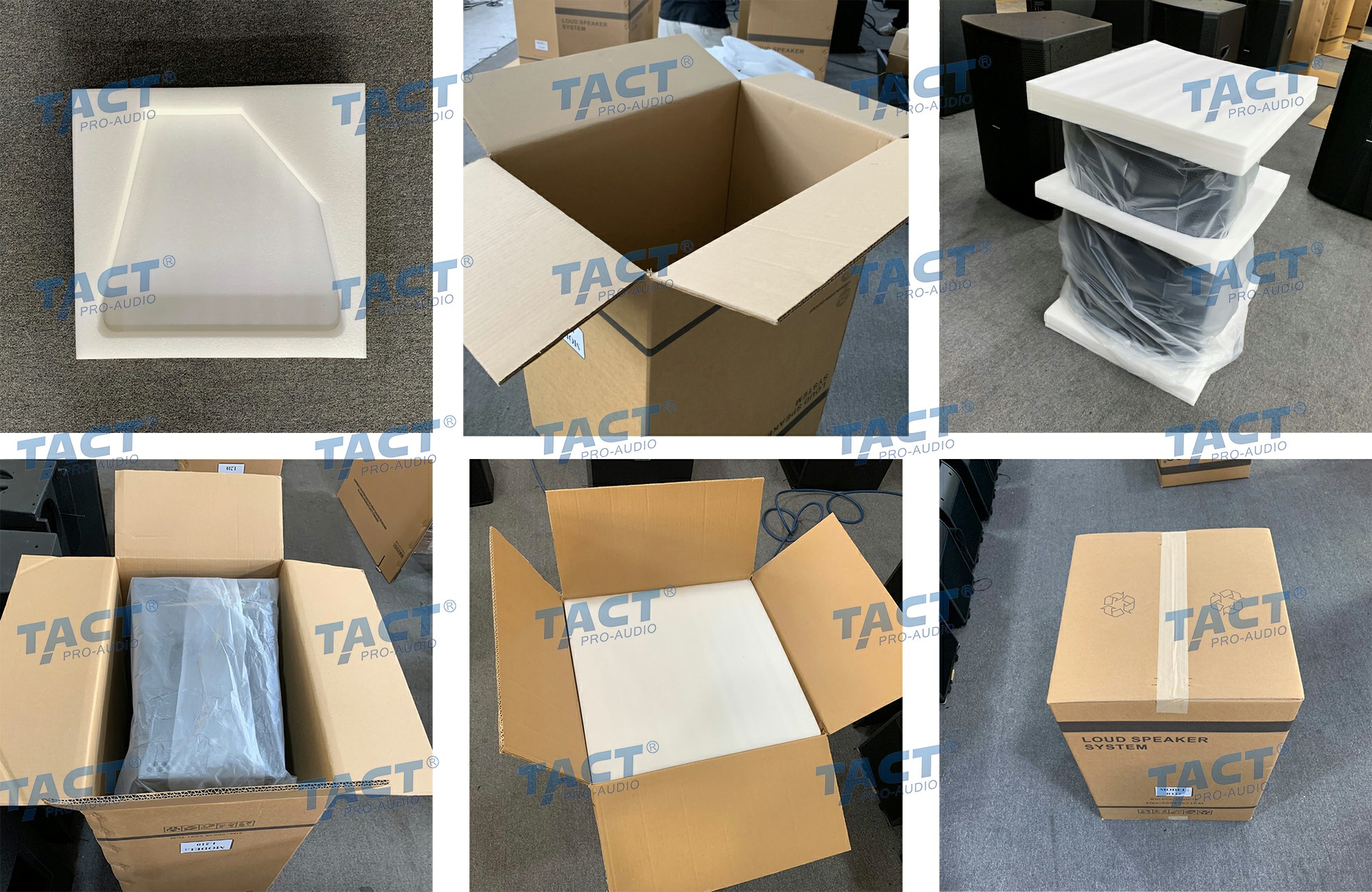

The quality of our carton box is very good, imported material, 7mm thickness, 5 layers. So it can protect speaker very well
1、Q: How do I know how many pcs line array for my project?
A: Please confirm these information:
1. What occasion used for?
2. How many audience?
3. What type of project? (Speech, show or?)
2、Q: How to adjust the sound?
A: Our technical team will set up the adjustment depends on your project, then test whole system before shipment. In addition, we will send software to you.
3、Q: What is the powered speaker?
A: Powered speaker also named active speaker, with amplifier and processor in active module. So no need to use extra amplifier and processor, easy to use and control.
4、Q: How long is the warranty?
A: Normally is 2 years. We will send you inspection photos and testing video to you before shipment, make sure whole system is ok. If there is any problem with the speaker that need to be repaired, please contact us anytime.
