Overview:

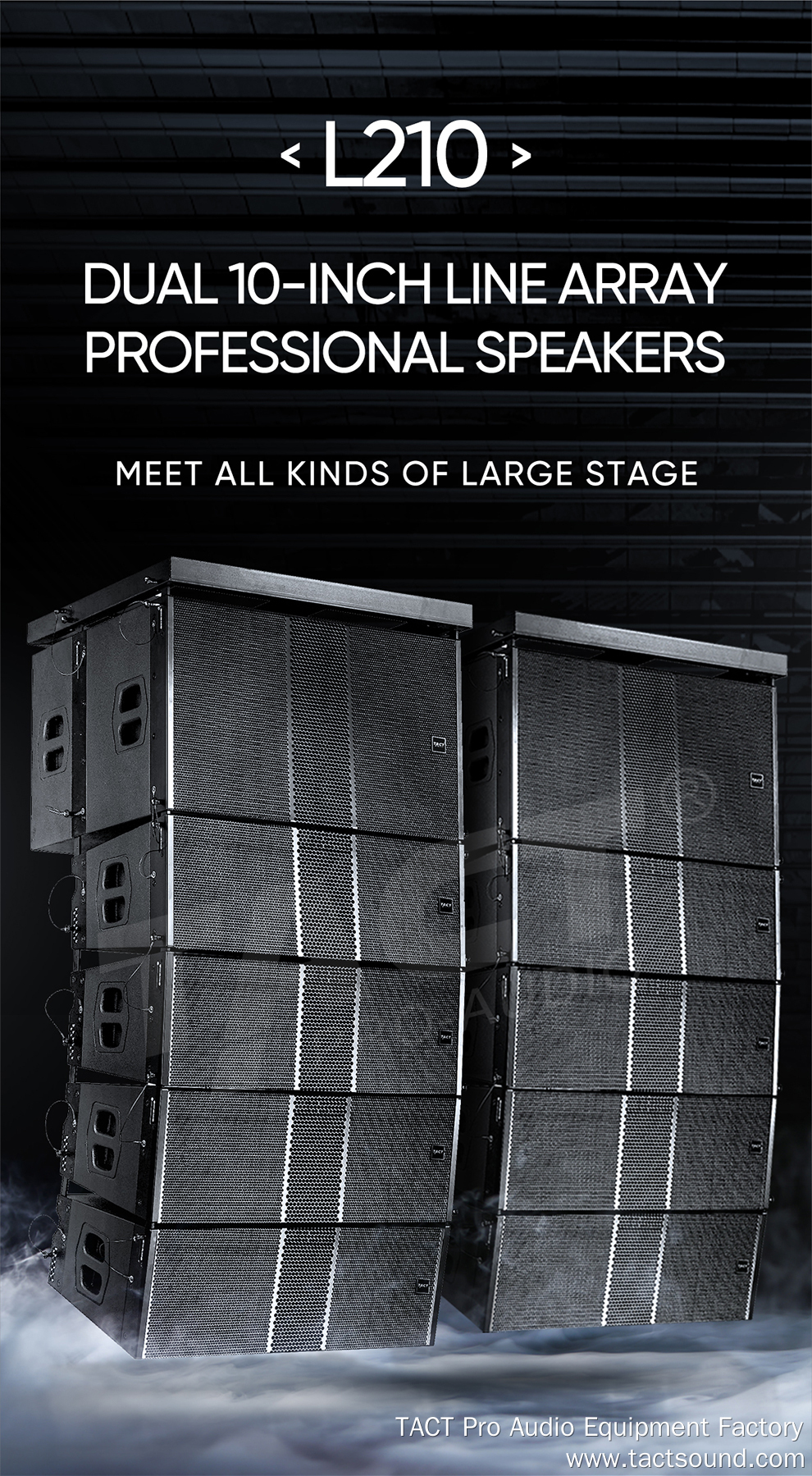

Dual 10inch line array speaker model L210 can be passive and active for your choice .The large-angle horn design makes the sound field radiation more uniform. this dual 10 inch line array can have different angles & easily hanging. it is Safe and reliable speaker interface. Using 18mm birch plywood cabinet with durable environmental paint. L210 dual 10 inch speaker line array sound system is suitable for a variety of indoor and outdoor occasions.
Application:

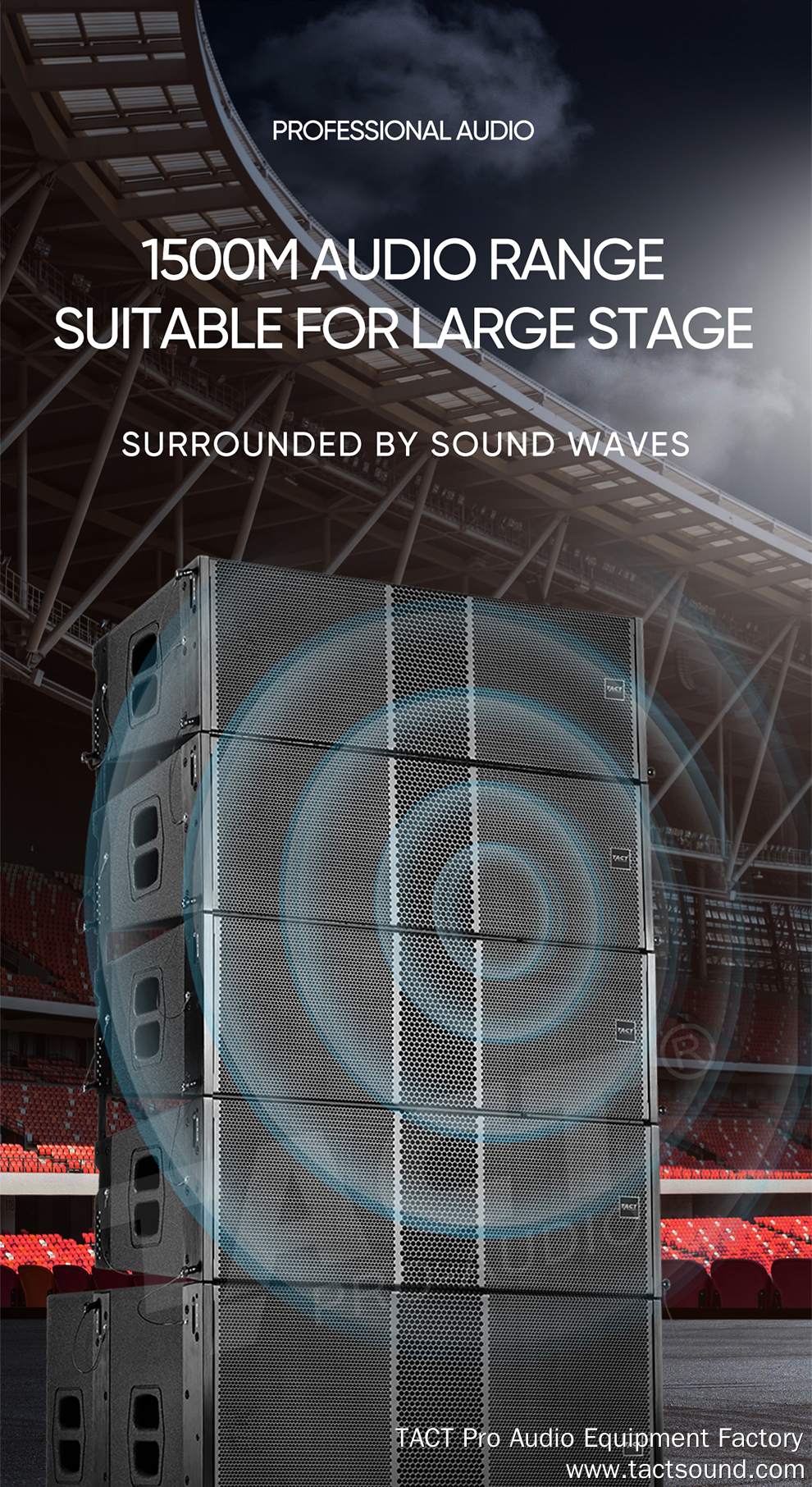

1、Large-scale performance
2、Major music festival performance
3、Outdoor square
4、 School hall
5、 Sport Stadium
6、 Theatre, Lecture hall
7、 Hotel banquet room
Sepcification:

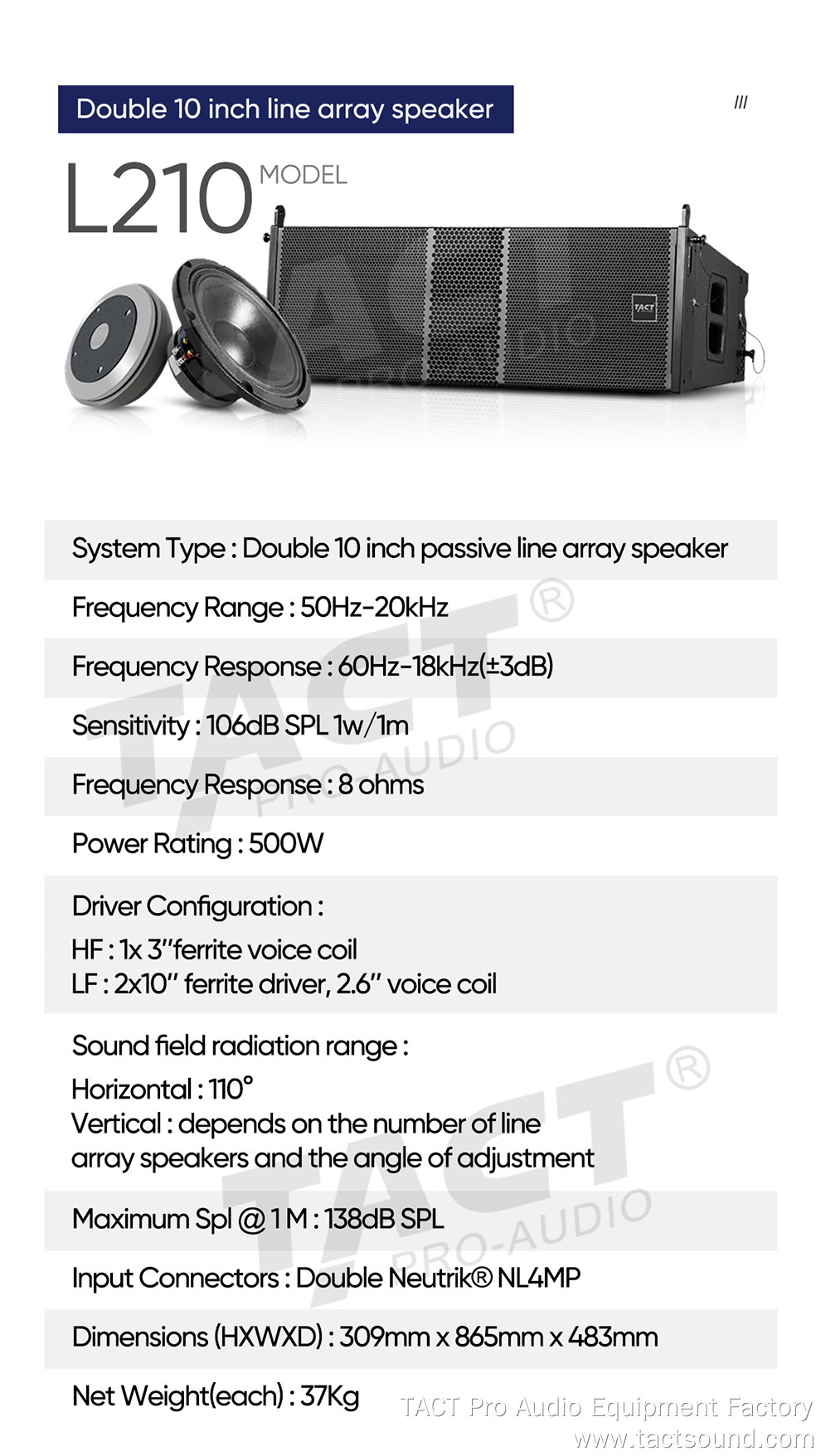

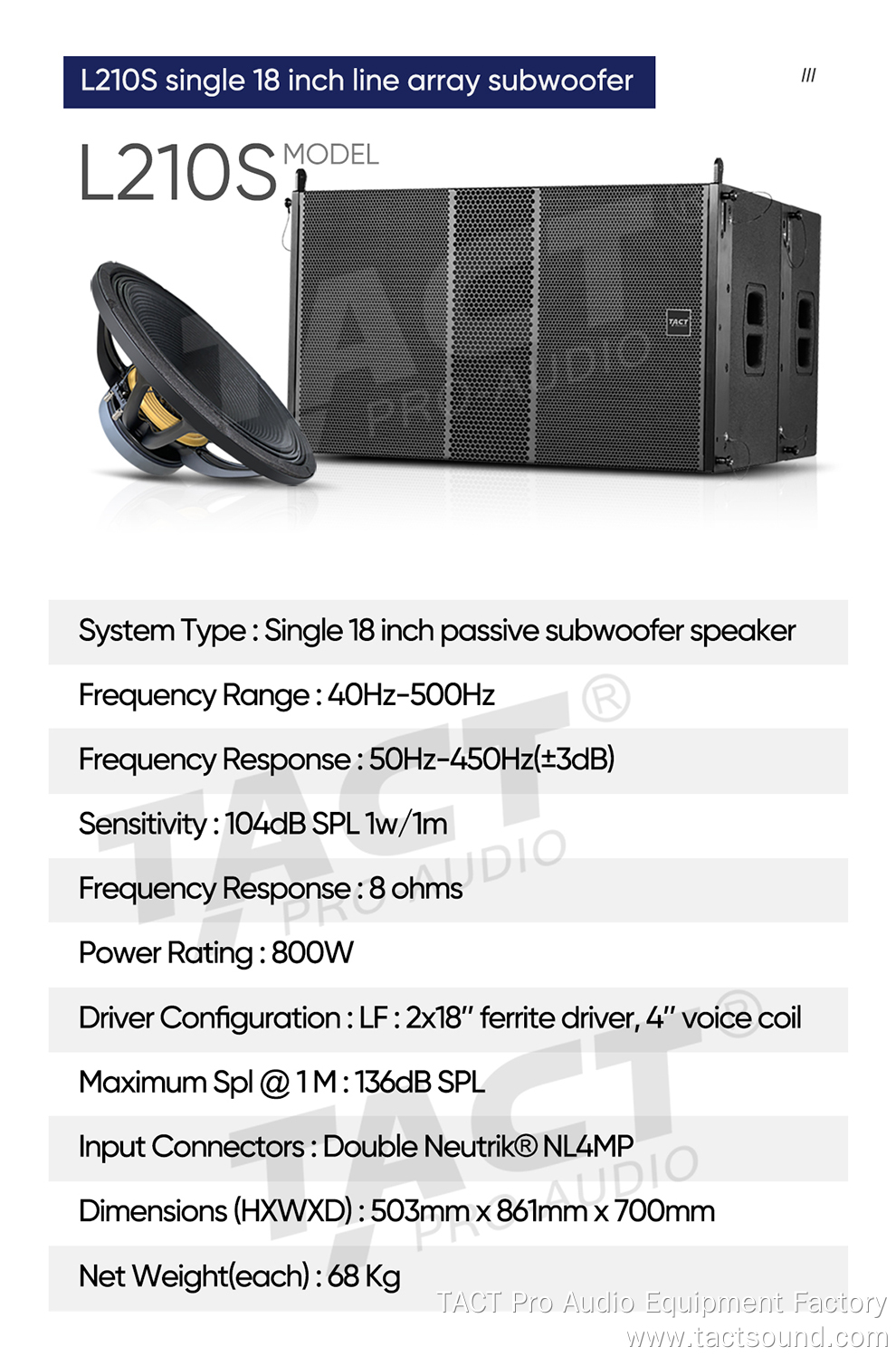

| Model Name： | L210 | Model Name： | L210S |

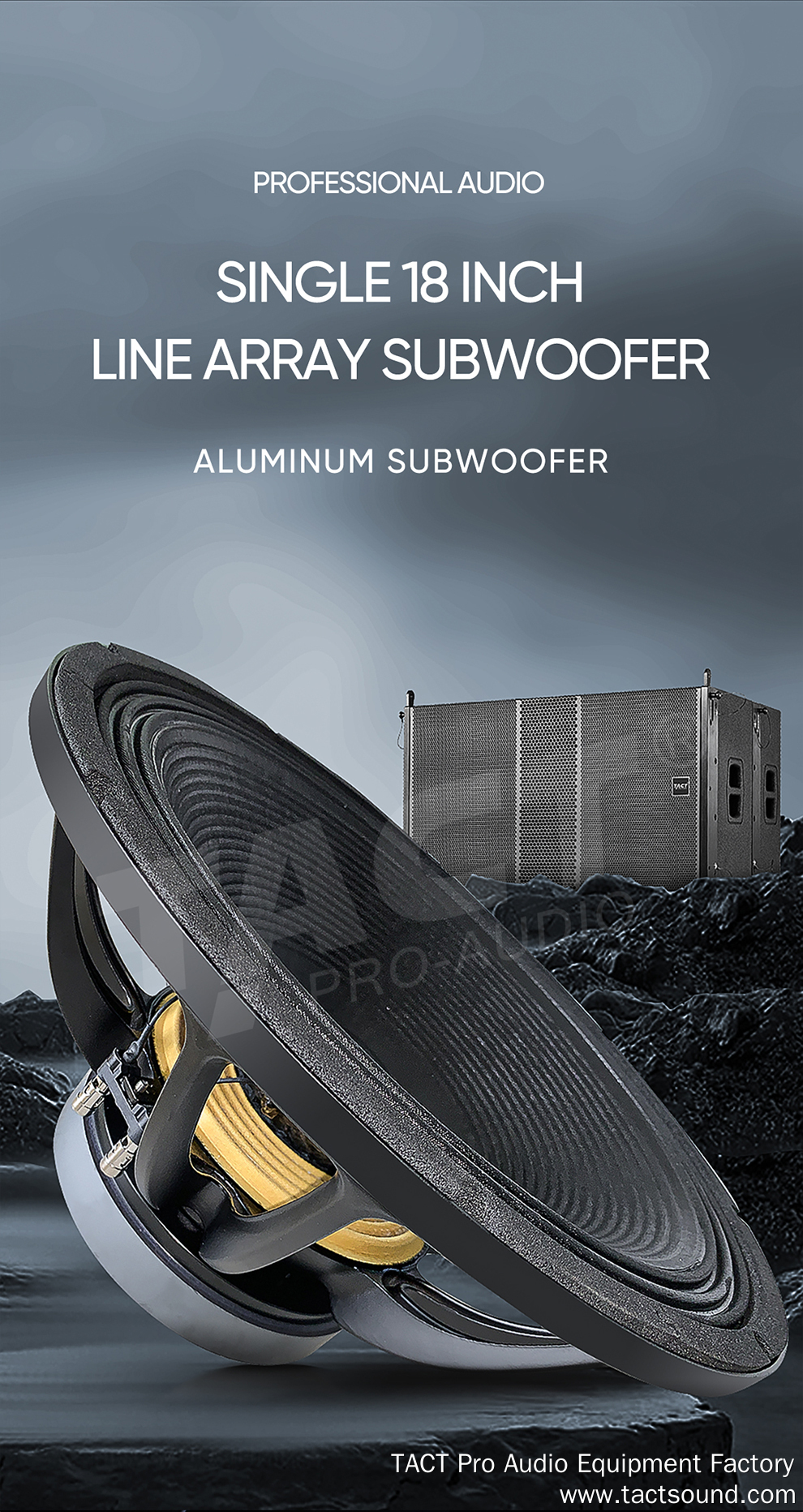

| System Type ： | Passive line array | System Type ： | Passive Single 18-inch subwoofer |
| Frequency range | 50Hz-20kHz | Frequency range | 40Hz-500Hz |
| Frequency response : | 60Hz-18kHz(±3dB) | Frequency response : | 50Hz-450Hz(±3dB) |

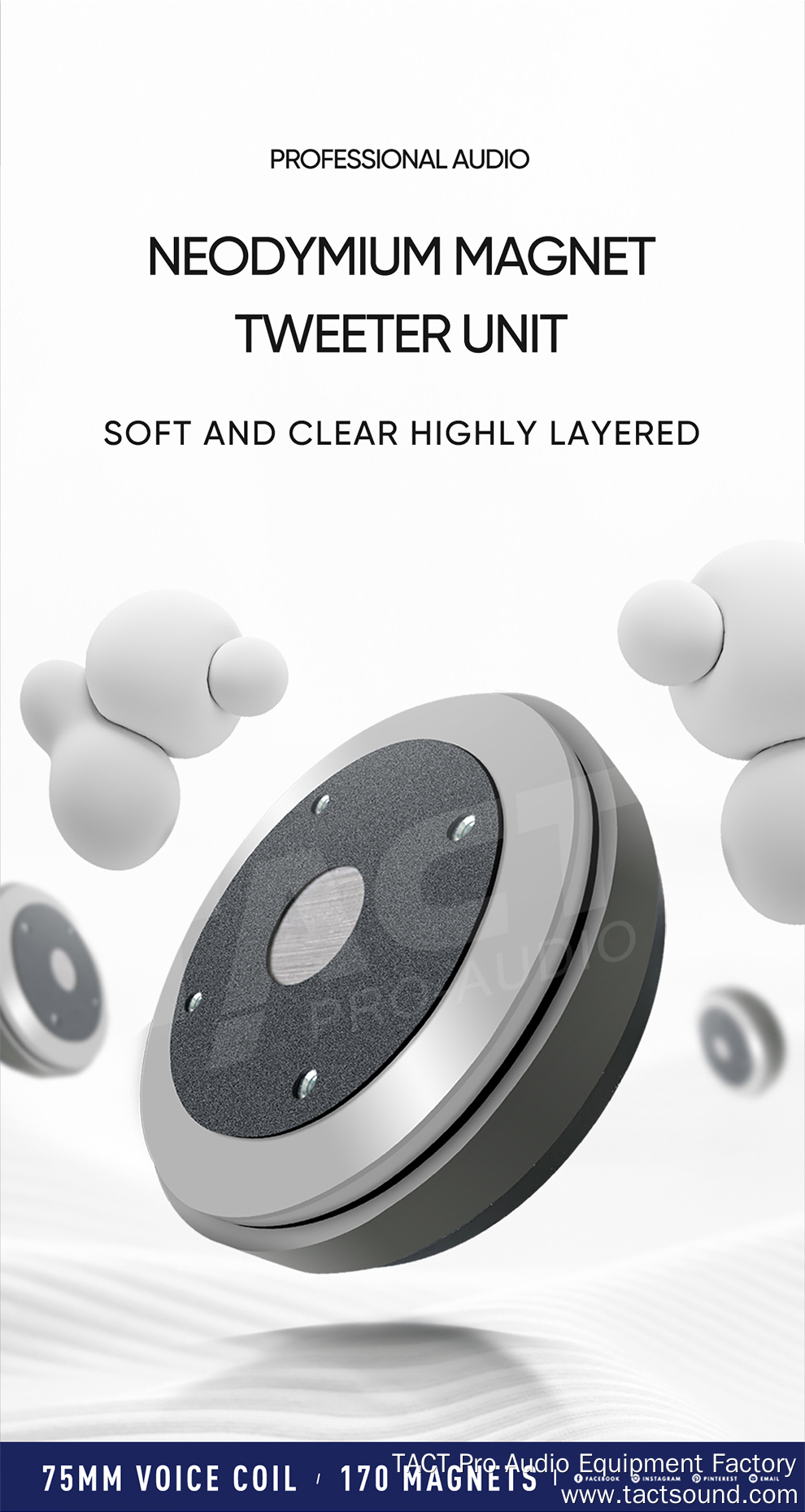

| HF Driver : | 1* 75mm voice coil/170 magnet | HF Driver : | |

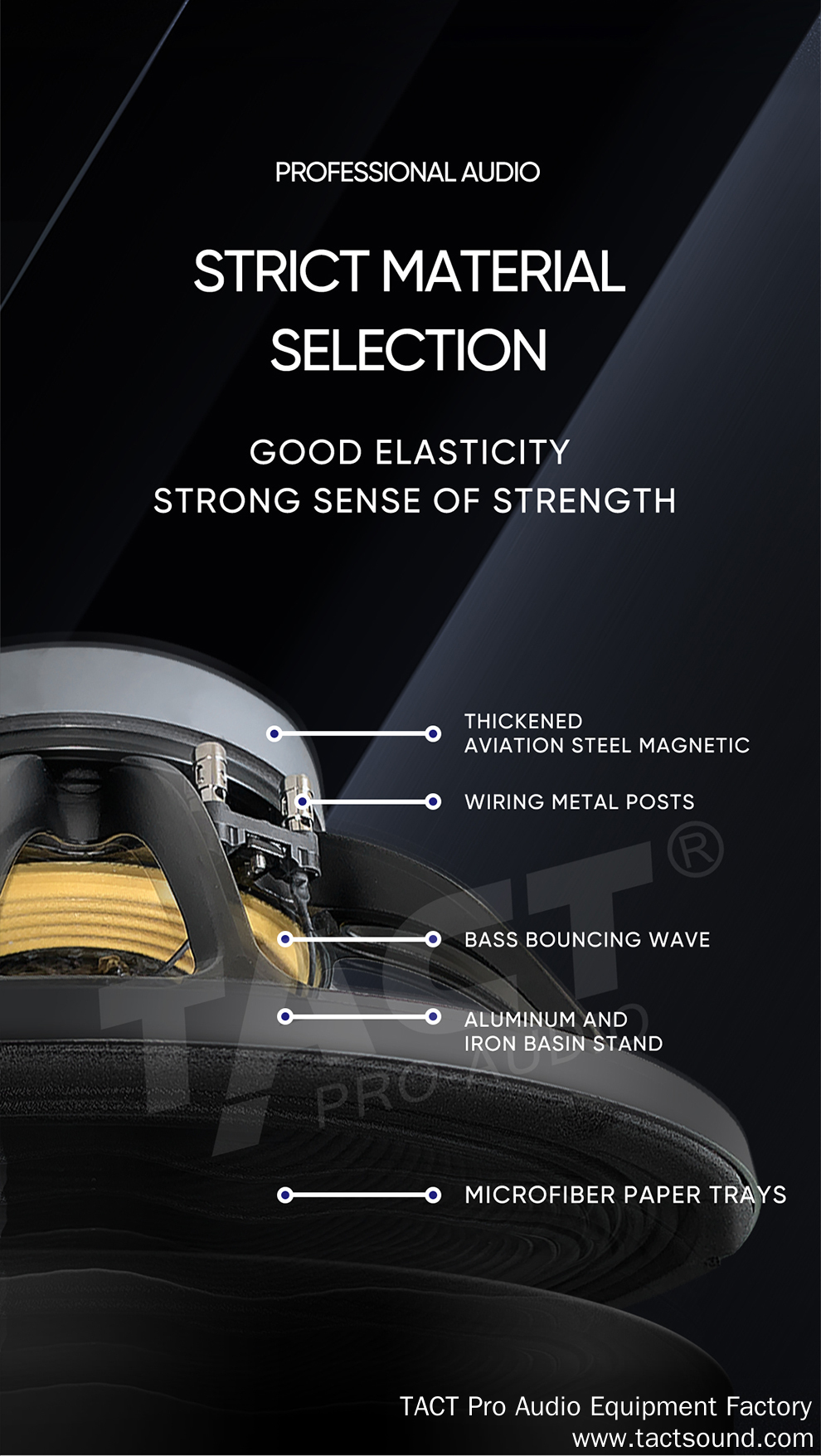

| LF Driver : | 2 x 156mm magnet/65mm voice coil | LF Driver : | 220mm magnet/100mm voice coil |
| Power rating / peak power. | 500W 8 ohms / 1000W 8 ohms | Power rating / peak power. | 800W 8 ohms/ 1600W 8 ohms |
| sensitivity 1 w i m : | 106dB SPL 1w/1m | sensitivity 1 w i m : | 104dB SPL 1w/1m |
| SPL max ! 1 m / peak | 138dB SPL | SPL max ! 1 m / peak | 136dB SPL |
| Dimensions (h x w x d) | 309mm x 865mm x 483mm | Dimensions (h x w x d) | 503mm*861mm*700mm |
| Net Weight : | 37Kg | Net Weight : | 68KG |
| Material : | 18mm birch plywood | Material : | 18mm birch plywood |
