This is TQ series dual 10 inch active line array system.
This is TQ series dual 10 inch active line array system.
Double 10 inch with 500W, high driver is 75mm voice coil, woofer is 156mm magnet/65mm voice coil. Single 18 inch woofer with 650W,woofer is 220mm magnet/100mm voice coil.

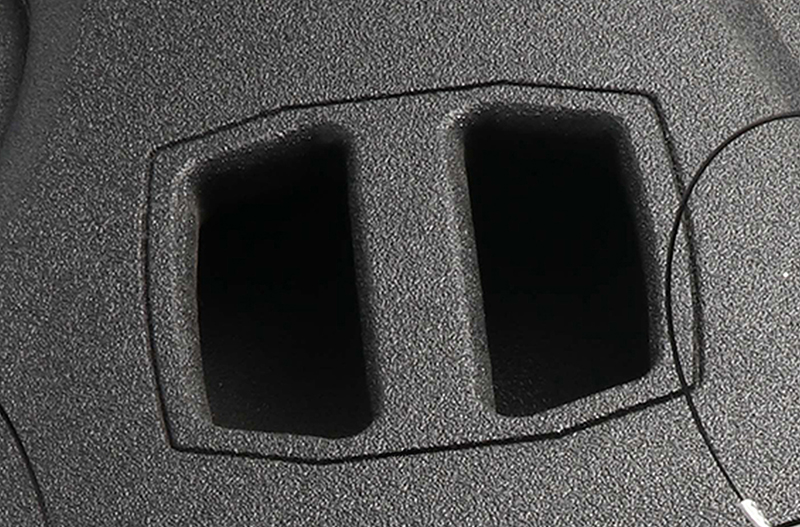

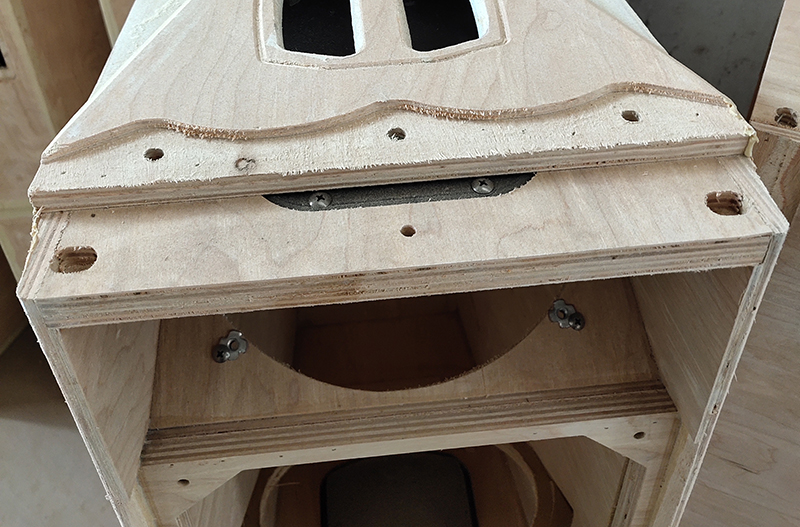

Whole set made by plywood and painted imported polyurea paint, which is anti-corrosive, waterproof, scratch-resistant, environmental without bad smell. Durable quality even for moving projects.

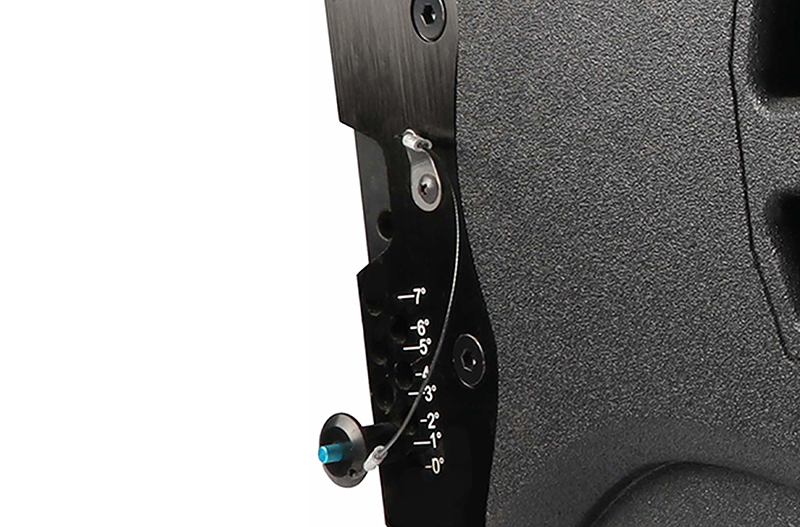

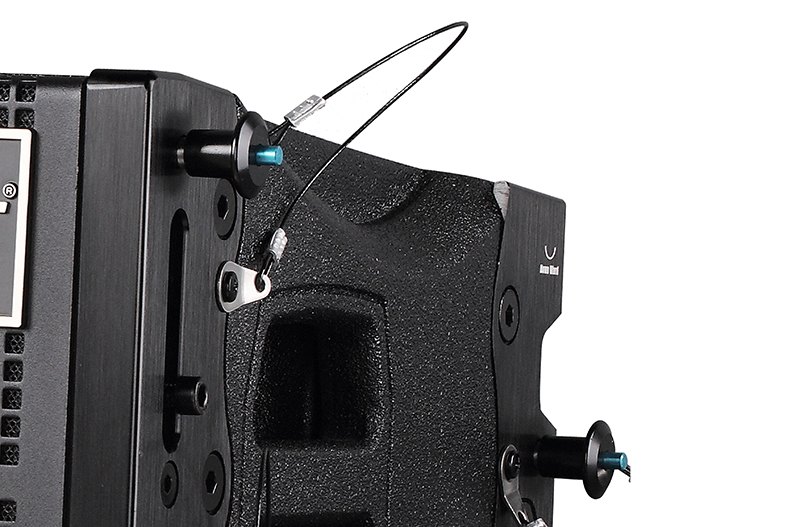

Use flybar to hang them up. The coverage pattern can be adjusted from 0° to 10° degree.

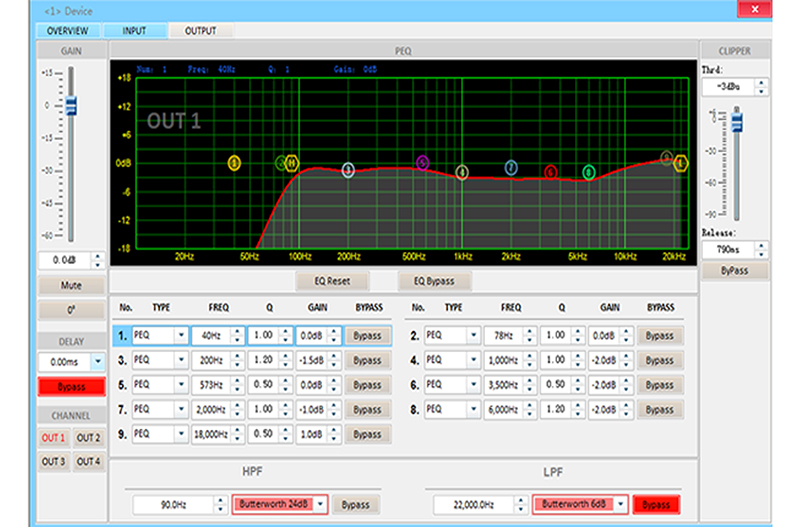

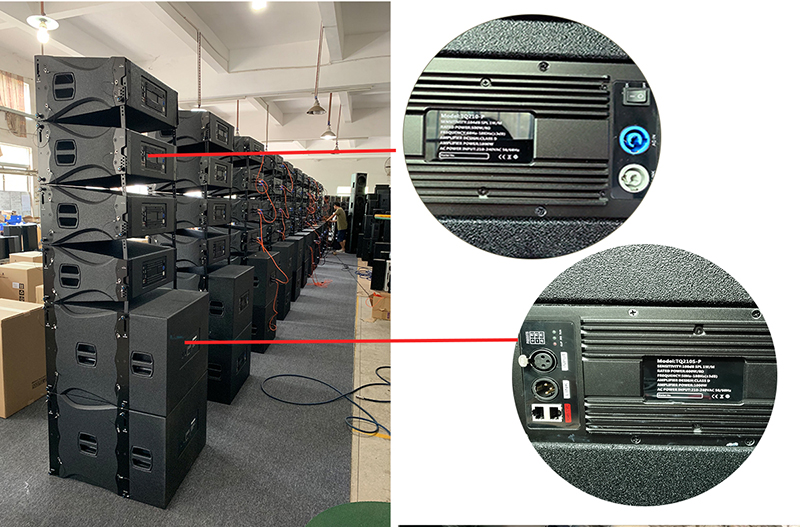

This model can be active by built-in DSP active module, very high sensitivity, enable for remote control,easy for operation. And we will offer adjustment service before shipment.
We provide this powered line array speaker for indoor and outdoor events, stadiums, churches, performing arts venues, theaters, big conference meeting halls where audio system are needed.
| Model | TQ210-P | TQ210S-P |
| System Type | Powered Double 10 inch line array speaker | Powered single 18 inch line array subwoofer |
| Frequency Range | 50Hz-20kHz | 40Hz-200Hz |
| Frequency Response | 60Hz-18kHz(±3dB) | 50Hz-180Hz(±3dB) |
| Sensitivity | 104dB SPL 1w/1m | 100dB SPL 1w/1m |
| Nominal Impedance | 8 ohms | 8 ohms |
| Power Rating | 500W | 600W |
| Amplifier Design | CLASS D with DSP | CLASS D |
| Amplifier Power | 1000W/8ohms | 1200W/8ohms |
| Ac Power Input | 210-240V AC 50/60Hz or 110V AC 50/60Hz | 210-240V AC 50/60Hz or 110V AC 50/60Hz |
| Maximum SPL@1M | 132dB SPL | 128dB SPL |
| Coverage Pattern | 110°x 5° | / |
| Input Connectors | Double Neutrik® NL4MP | Double Neutrik® NL4MP |

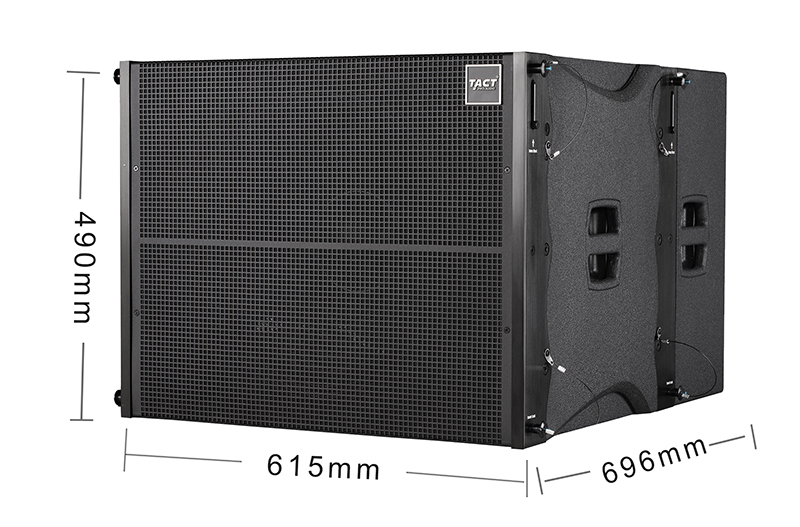

| Dimension(H*W*D) | 305mm x618mm x 483mm | 490mm x 615mm x696mm |
| Net Weight(each) | 33.5KG | 49KG |
With 1 pcs 75mm voice coil high driver, 2 pcs 156mm magnet/65mm voice coil 10 inch woofers. Sound spreads farther and clearer.
With 1 pcs 220mm magnet/100mm voice coil 18 inch subwoofer, deep bass and powerful
This line array for indoor and outdoor events, stadiums, churches, performing arts venues, theaters, big conference meeting halls where audio system are needed.
1、Q: How do I know how many pcs line array for my project?
A: Please confirm these information:
1. What occasion used for?
2 .How many audience?
3. What type of project? (Speech, show or?)
2、Q: How to adjust the sound?
A：Our technical team will set up the adjustment depends on your project, then test whole system before shipment. In addition, we will send software to you.
3、Q: Is it OK to print my logo on loudspeaker product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4、Q: How long is the warranty?
A: Normally is 2 years. We will send you inspection photos and testing video to you before shipment, make sure whole system is ok. If there is any problem with the speaker that need to be repaired, please contact us anytime.
